Clutch Pedal: Components: Notes

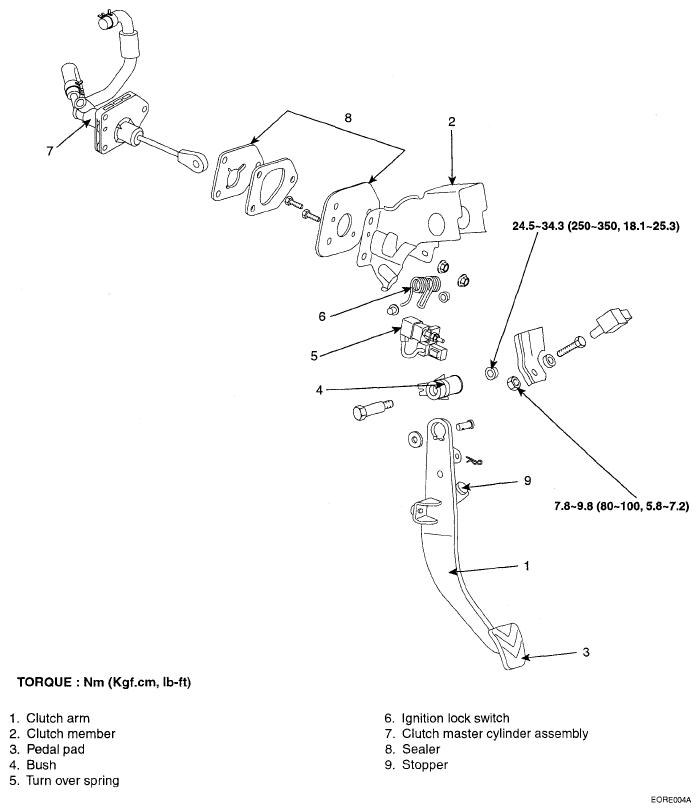

Fig 1: Exploded View Of Clutch Pedal Components With Torque Specifications

G04891633

Courtesy of HYUNDAI MOTOR CO.
