Power Steering Gear Box: Components: Notes

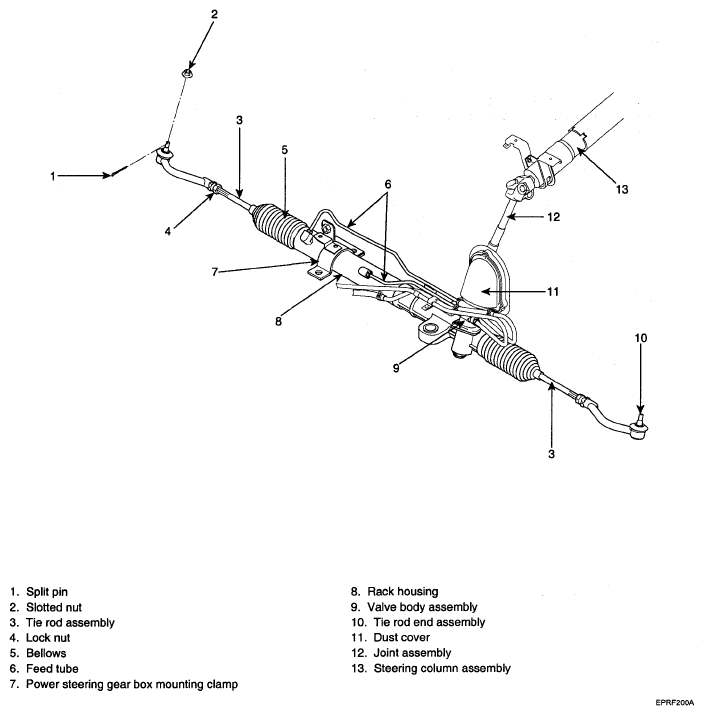

Fig 1: Identifying Power Steering Gear Box Components

G04892391

Courtesy of HYUNDAI MOTOR CO.
