Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

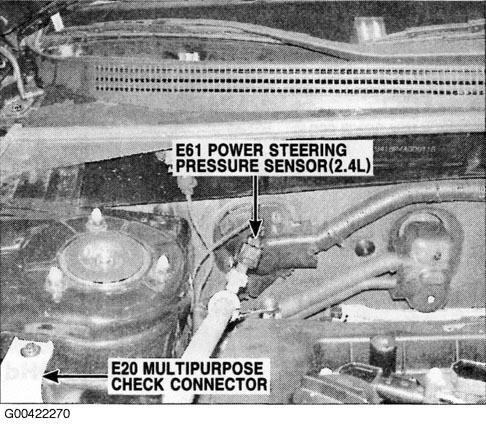

Fig 1: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

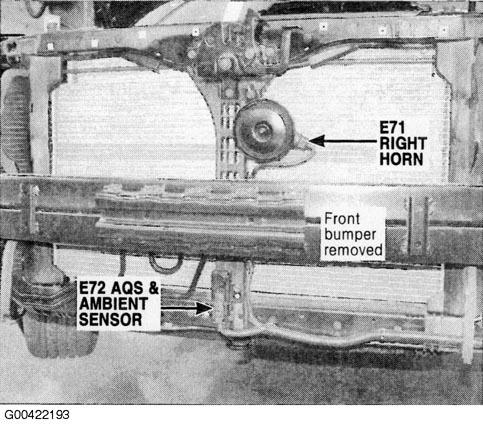

Fig 2: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

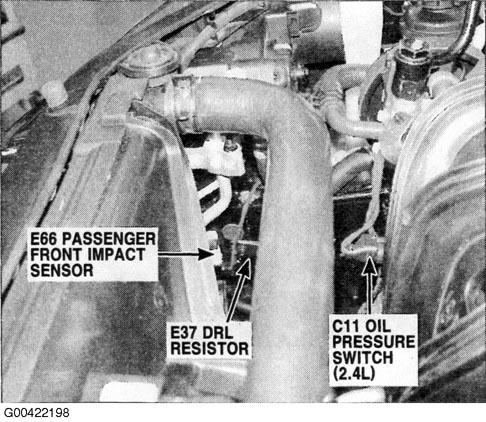

Fig 3: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

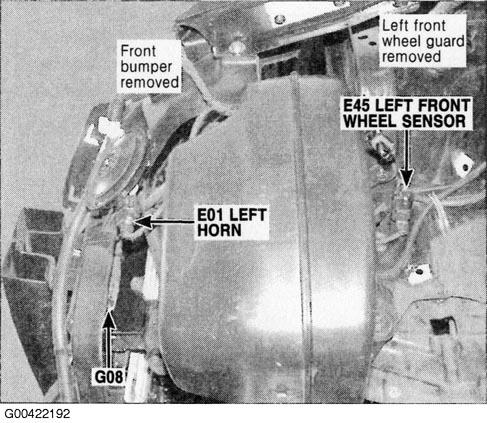

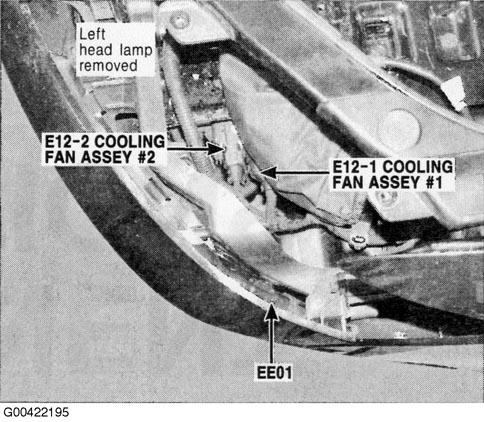

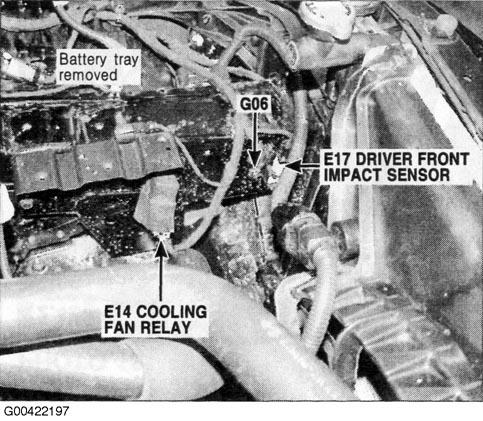

Fig 4: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

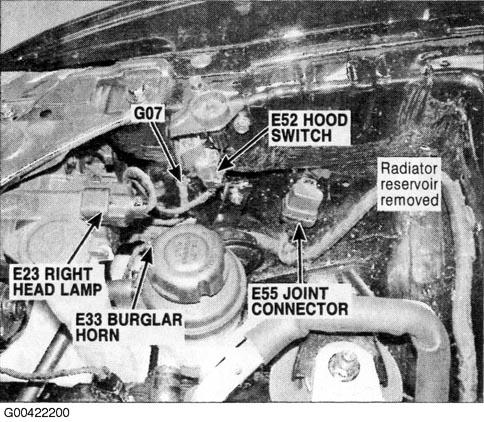

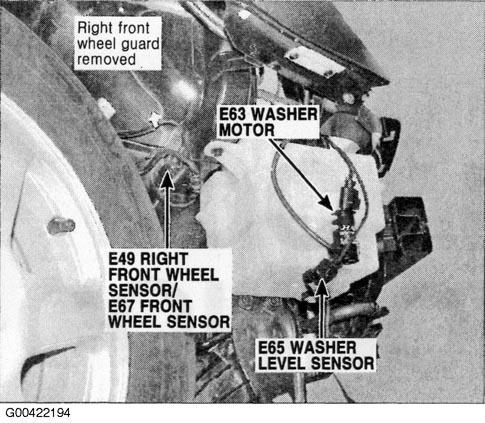

Fig 7: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

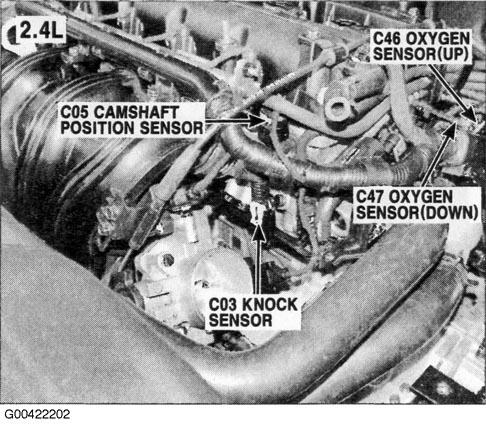

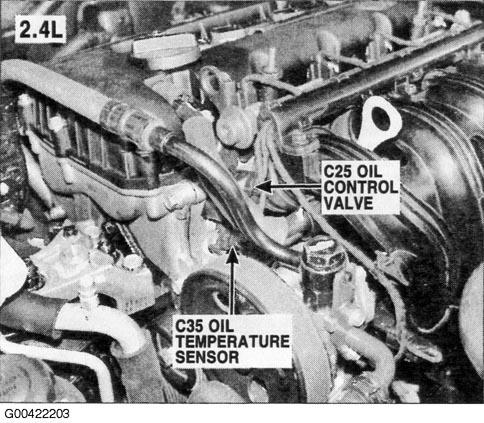

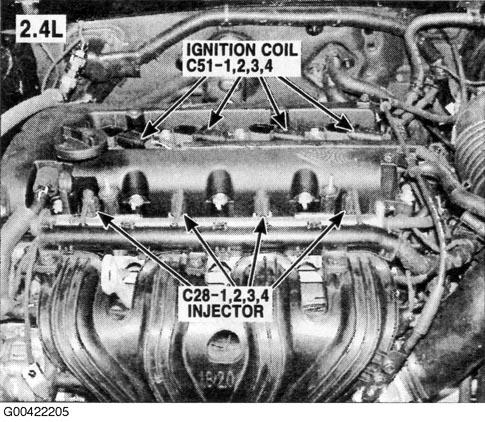

Fig 9: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Left Front Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.

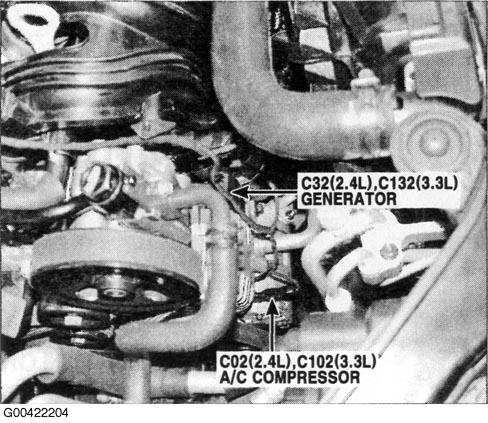

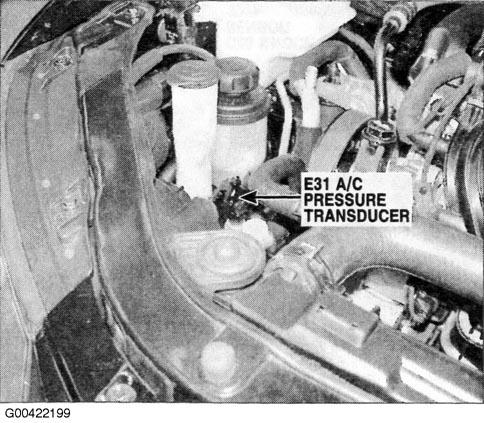

Fig 12: Front Of Engines
Courtesy of HYUNDAI MOTOR CO.

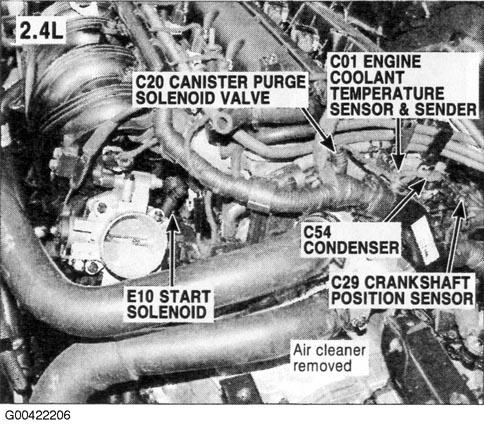

Fig 13: Top Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Top Rear Of Engine (2.4L)
Courtesy of HYUNDAI MOTOR CO.

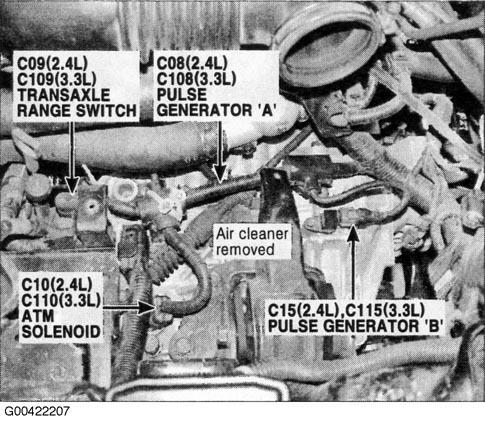

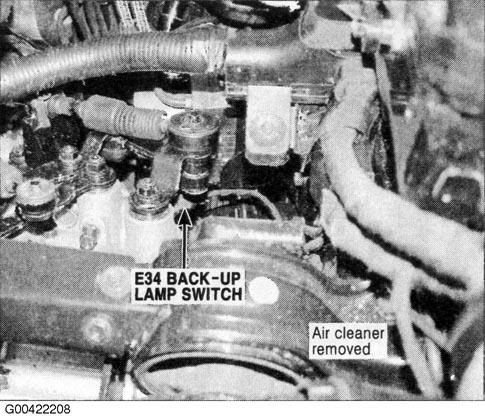

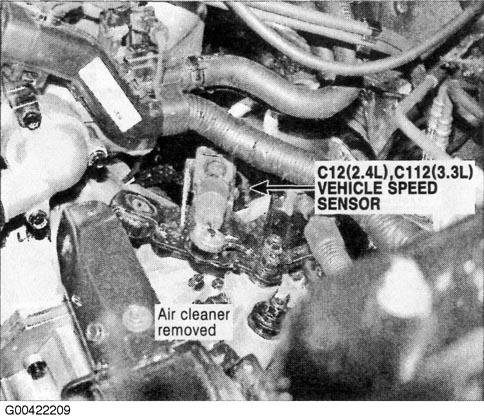

Fig 15: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 18: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

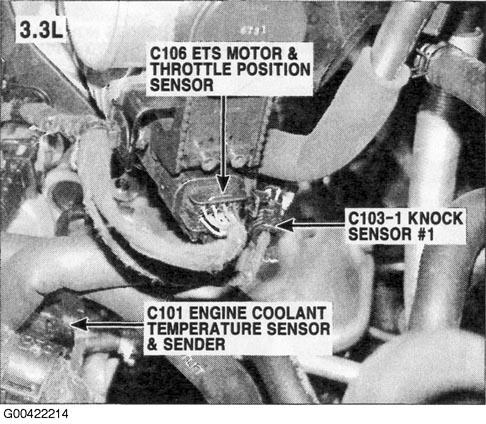

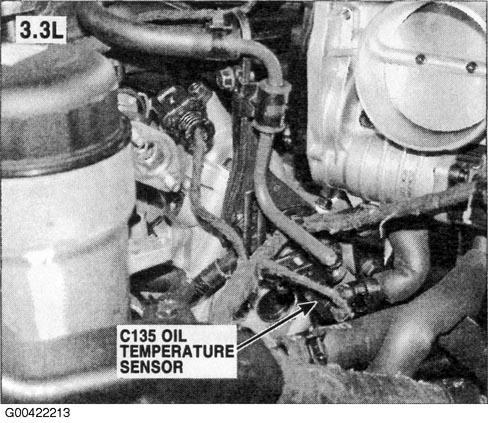

Fig 19: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Rear Center Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Left Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.

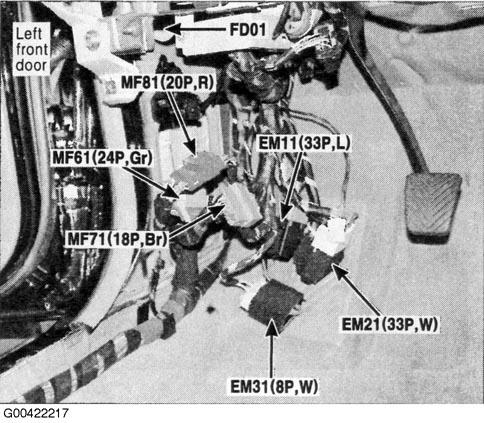

Fig 23: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

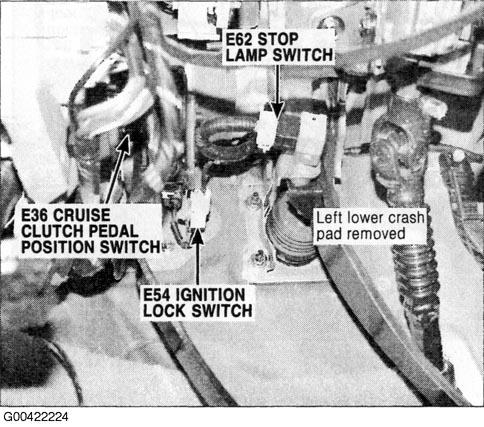

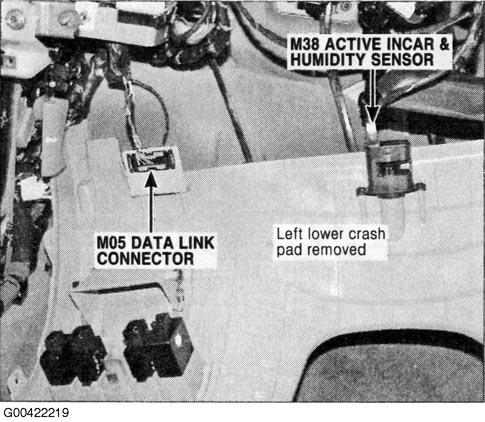

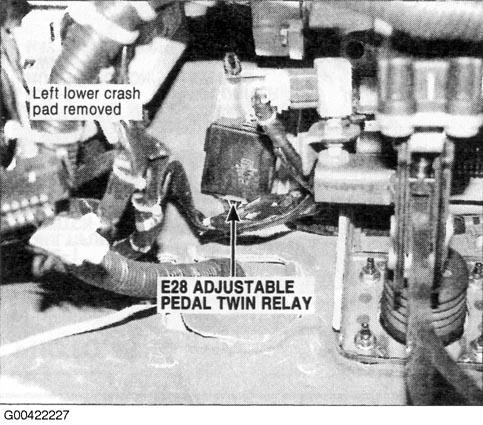

Fig 24: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

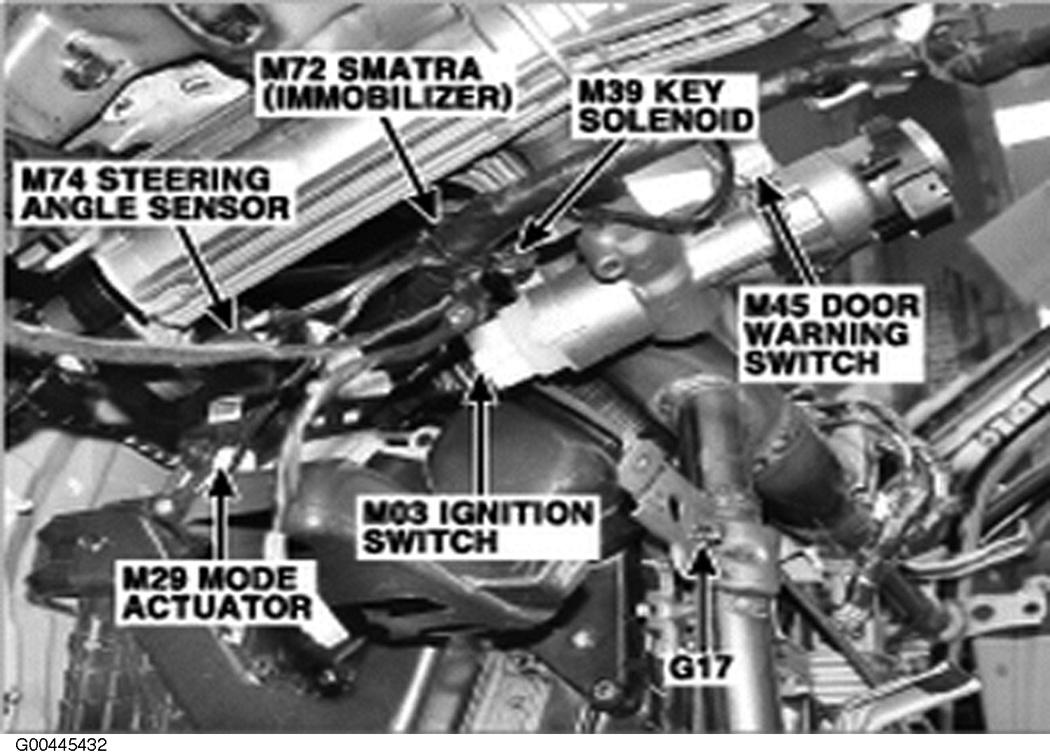

Fig 25: Steering Column
Courtesy of HYUNDAI MOTOR CO.

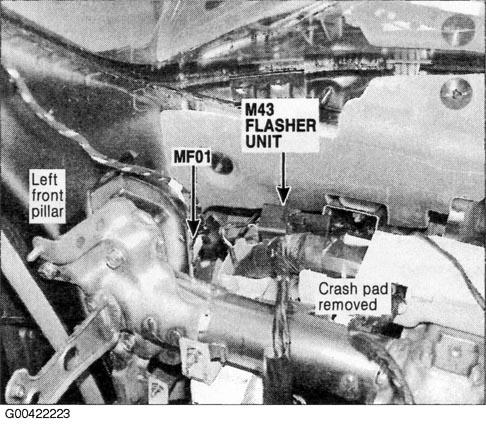

Fig 26: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

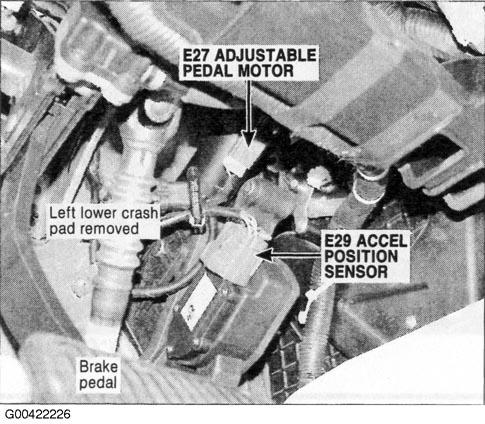

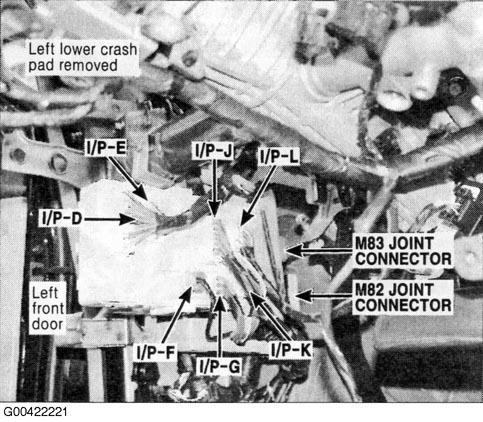

Fig 28: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

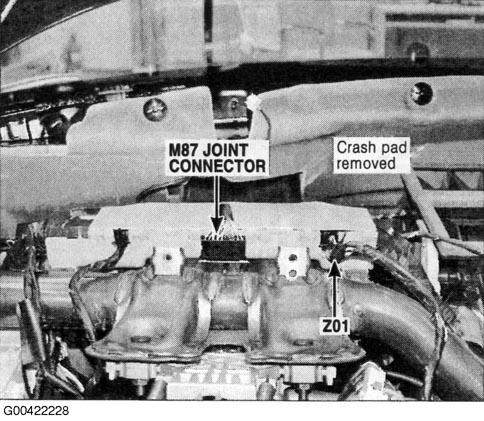

Fig 34: Behind Lower Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 35: Under Front Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Under Front Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Right Front Side Of Center Console
Courtesy of HYUNDAI MOTOR CO.

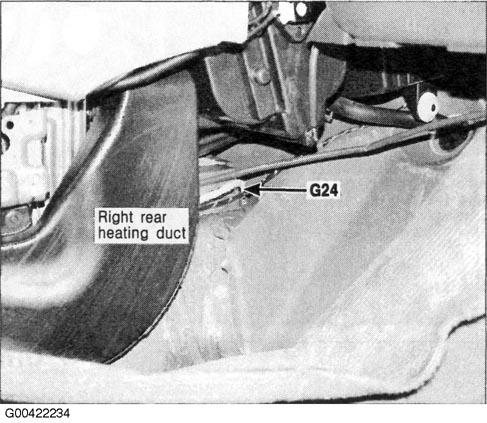

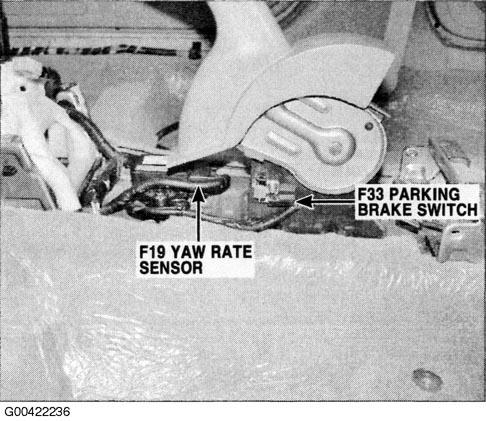

Fig 38: Under Center Console
Courtesy of HYUNDAI MOTOR CO.

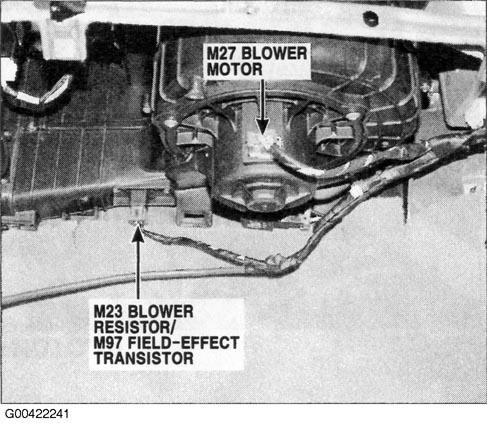

Fig 39: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

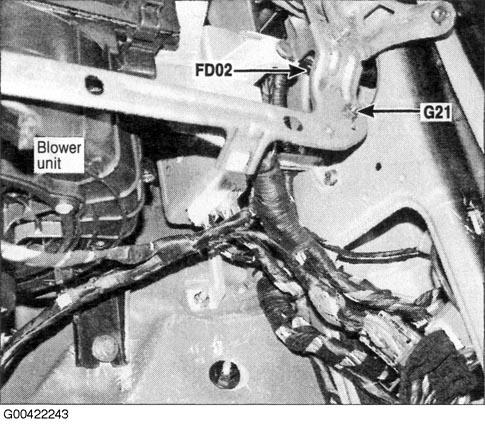

Fig 40: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

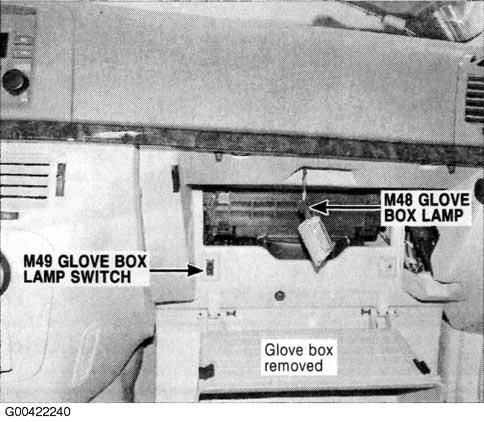

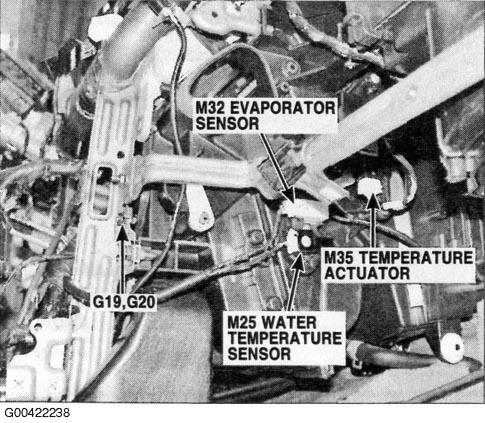

Fig 41: Behind Glove Box
Courtesy of HYUNDAI MOTOR CO.

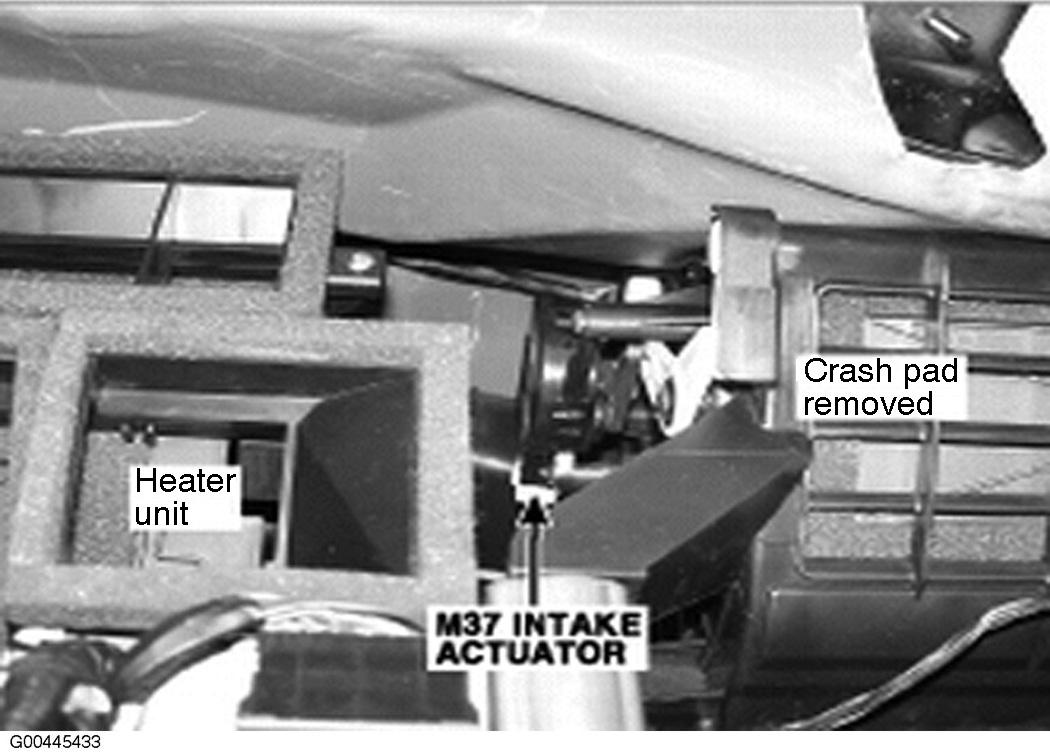

Fig 42: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

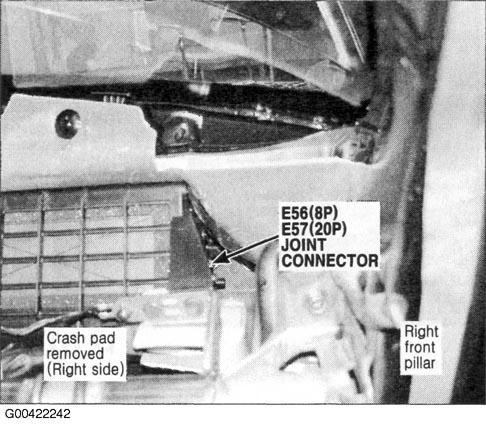

Fig 43: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

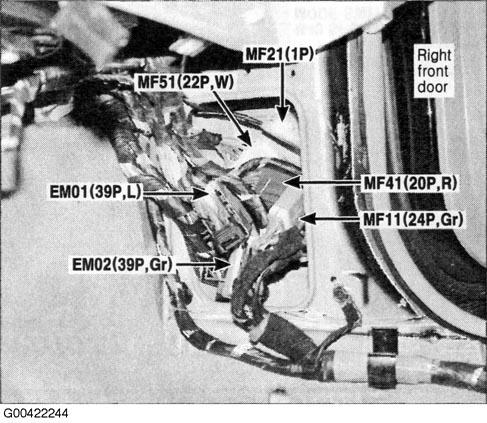

Fig 45: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Left Front Of Roof
Courtesy of HYUNDAI MOTOR CO.

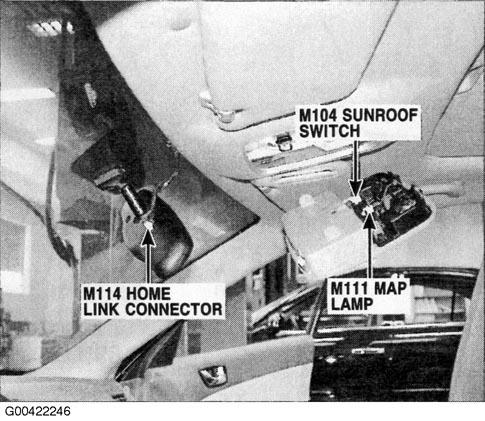

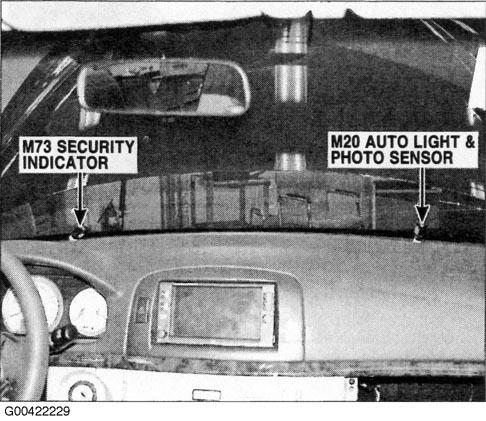

Fig 47: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.

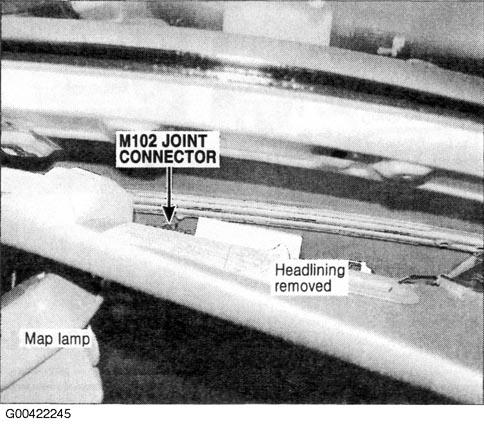

Fig 48: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.

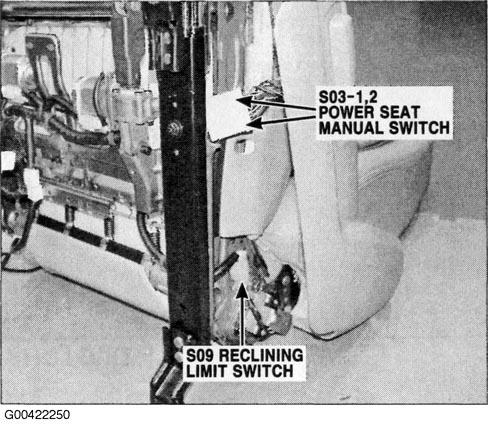

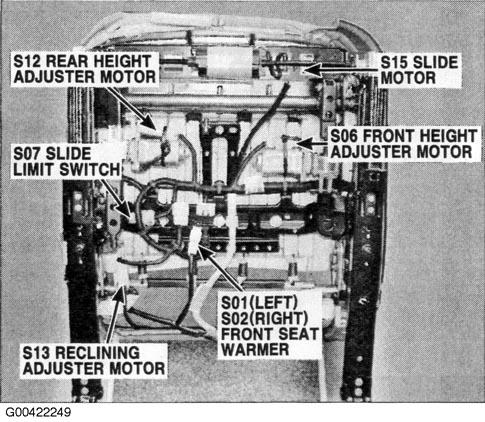

Fig 49: Under Right Front Seat (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

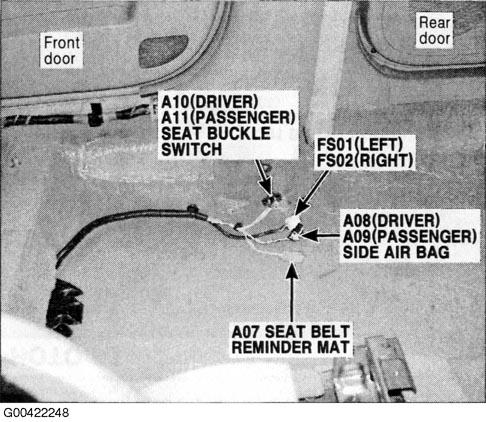

Fig 50: Under Front Seats
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Under Front Seats
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Rear Of Driver's Door
Courtesy of HYUNDAI MOTOR CO.

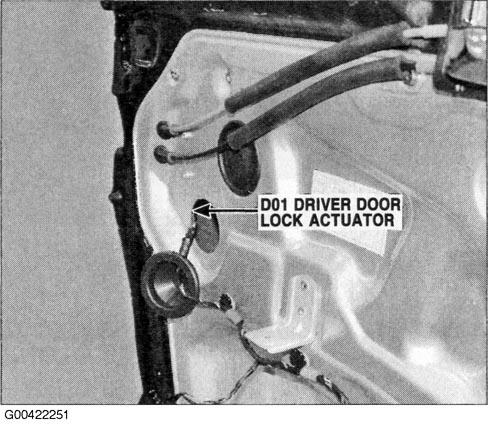

Fig 53: Driver's Door
Courtesy of HYUNDAI MOTOR CO.

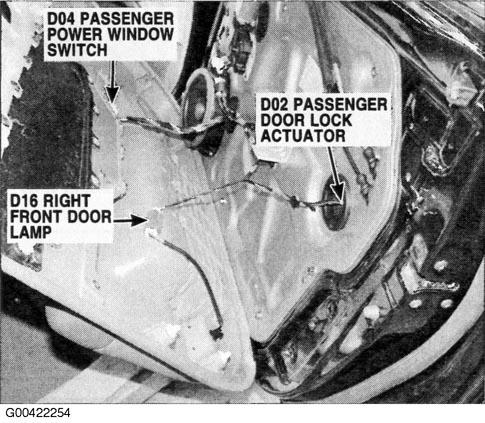

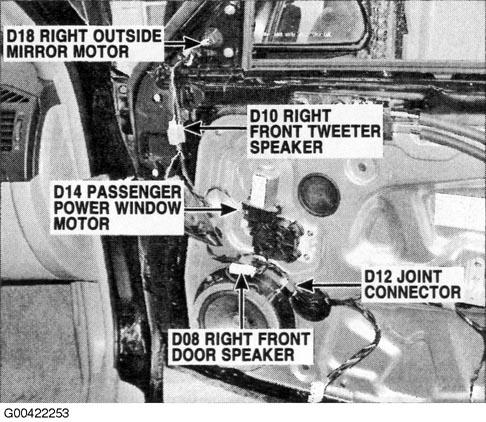

Fig 54: Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Rear Of Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.

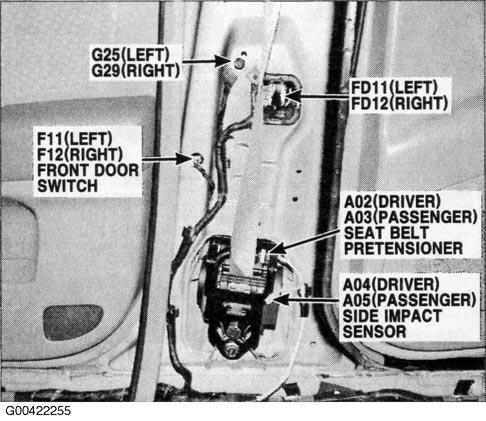

Fig 56: Right "B" Pillar (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

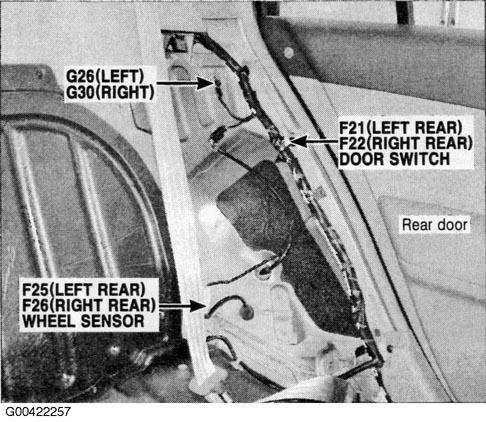

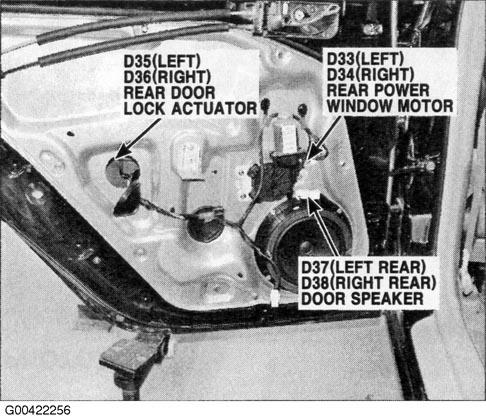

Fig 57: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Behind Left Quarterpanel (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Right "C" Pillar (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

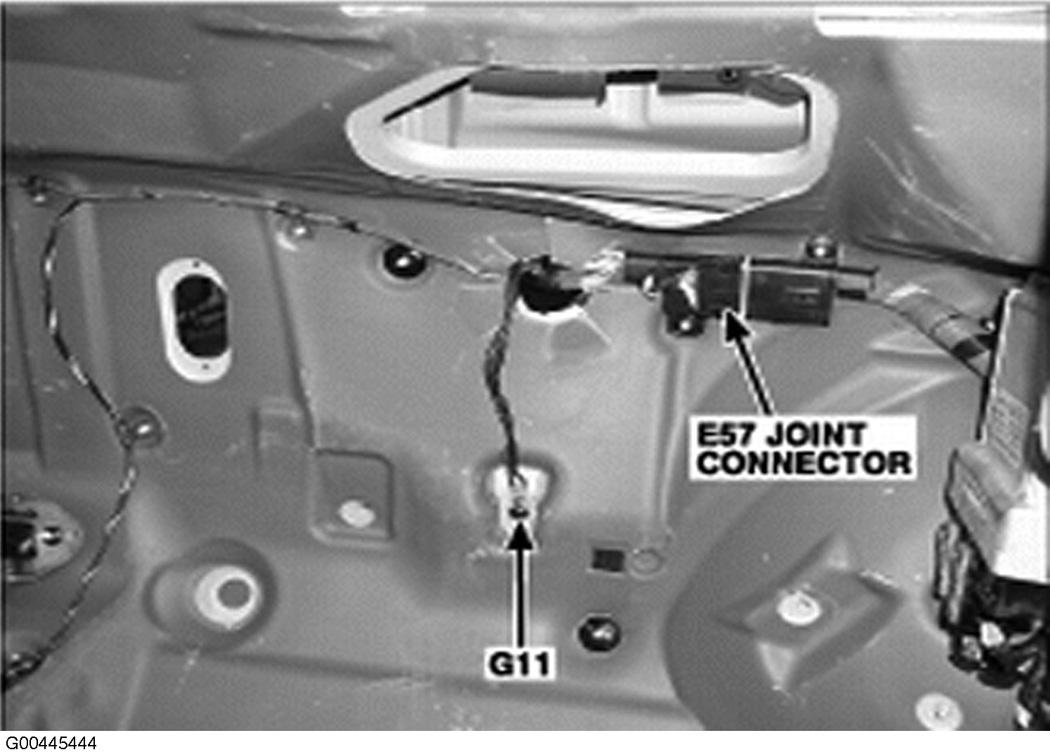

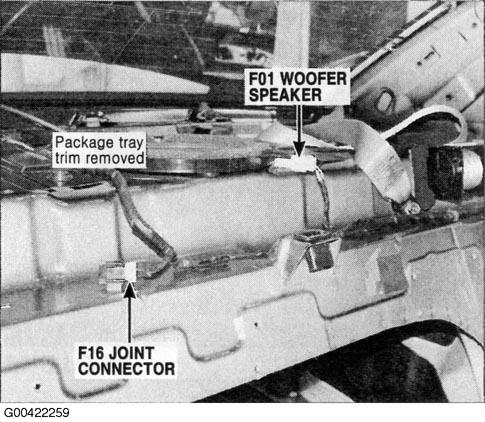

Fig 60: Behind Rear Seats
Courtesy of HYUNDAI MOTOR CO.

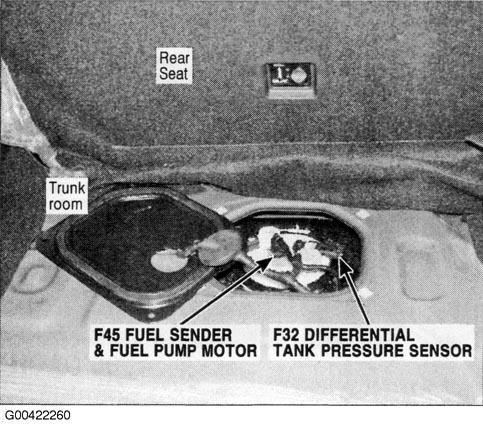

Fig 61: Top Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.

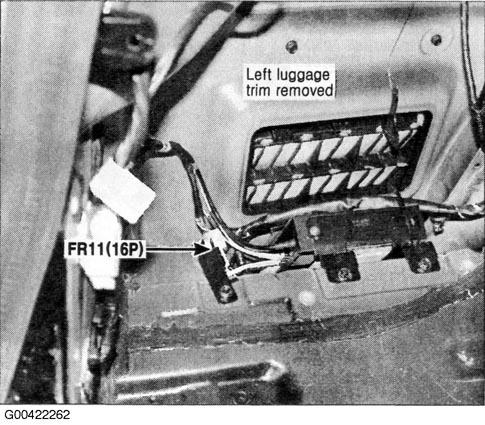

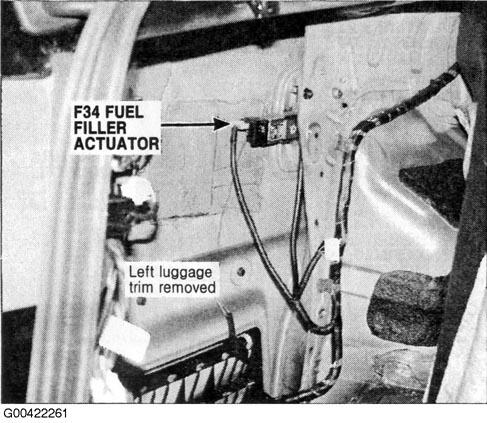

Fig 62: Left Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Left Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

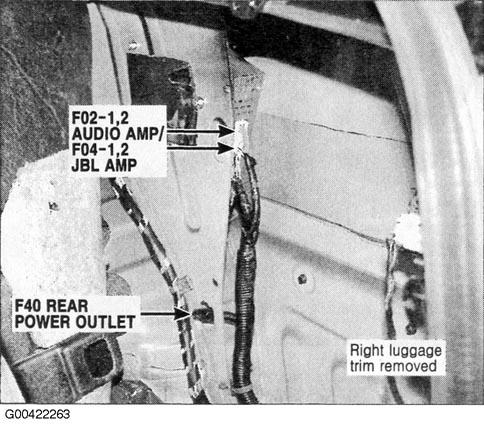

Fig 64: Right Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

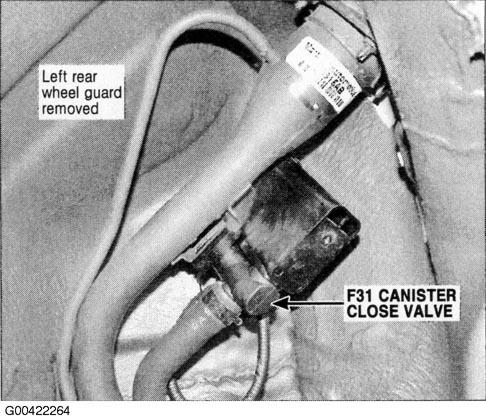

Fig 65: Left Underside Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

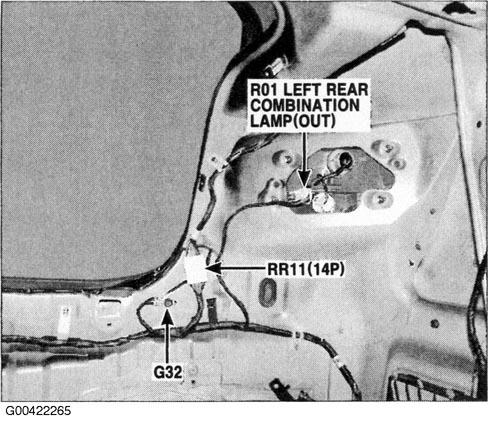

Fig 66: Left Rear Corner Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

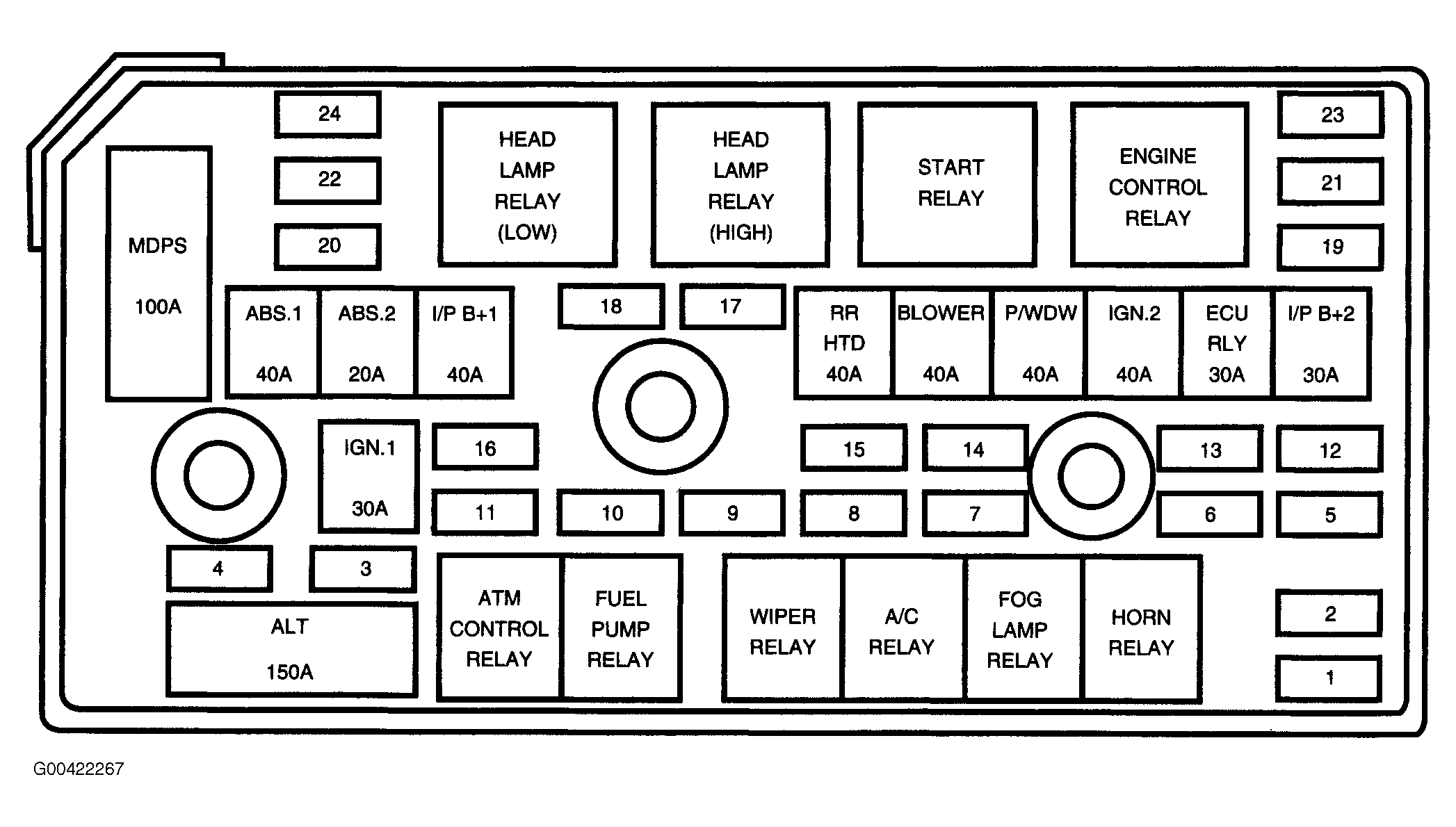

Fig 67: Engine Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.

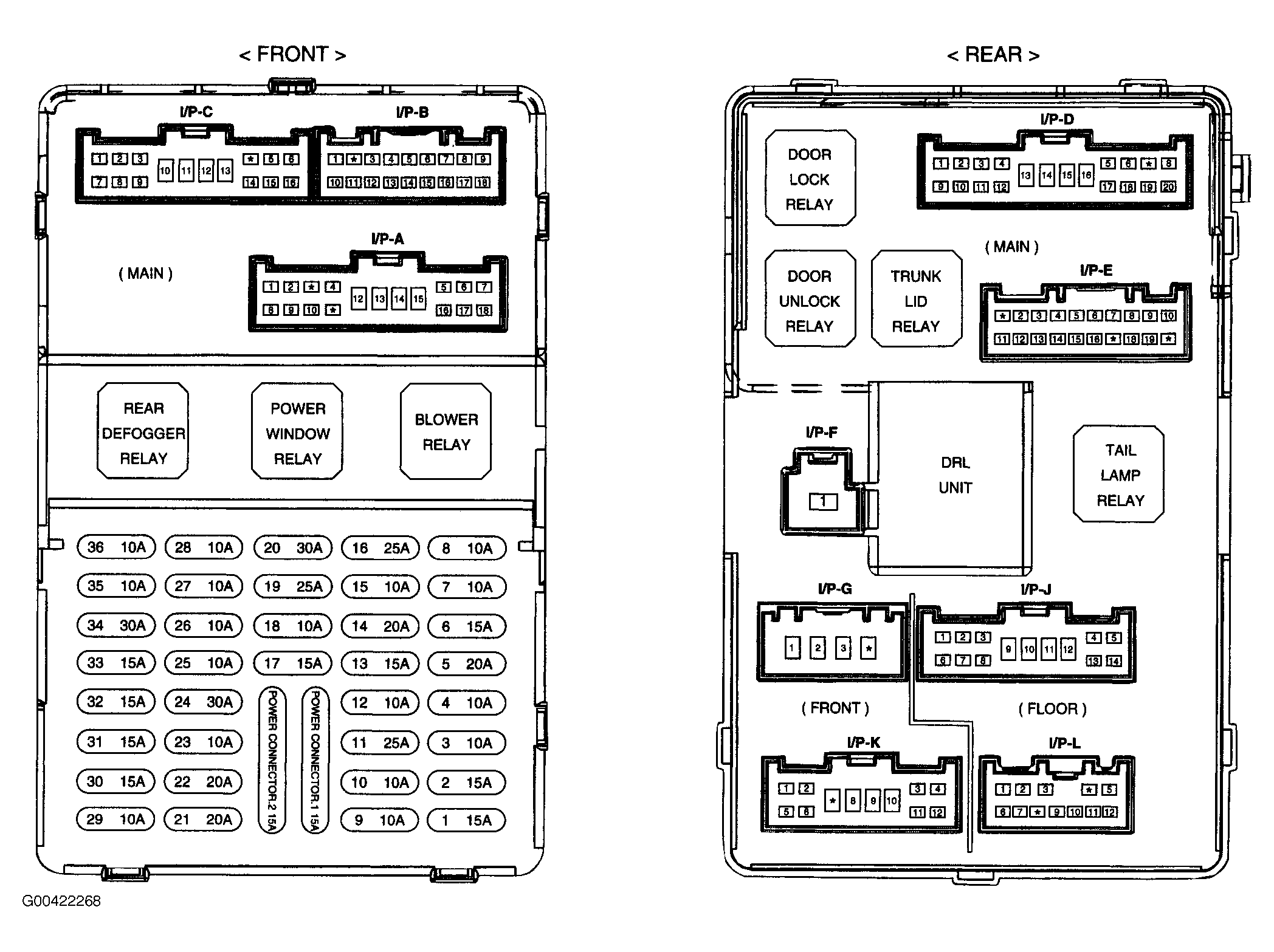

Fig 68: Passenger Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.

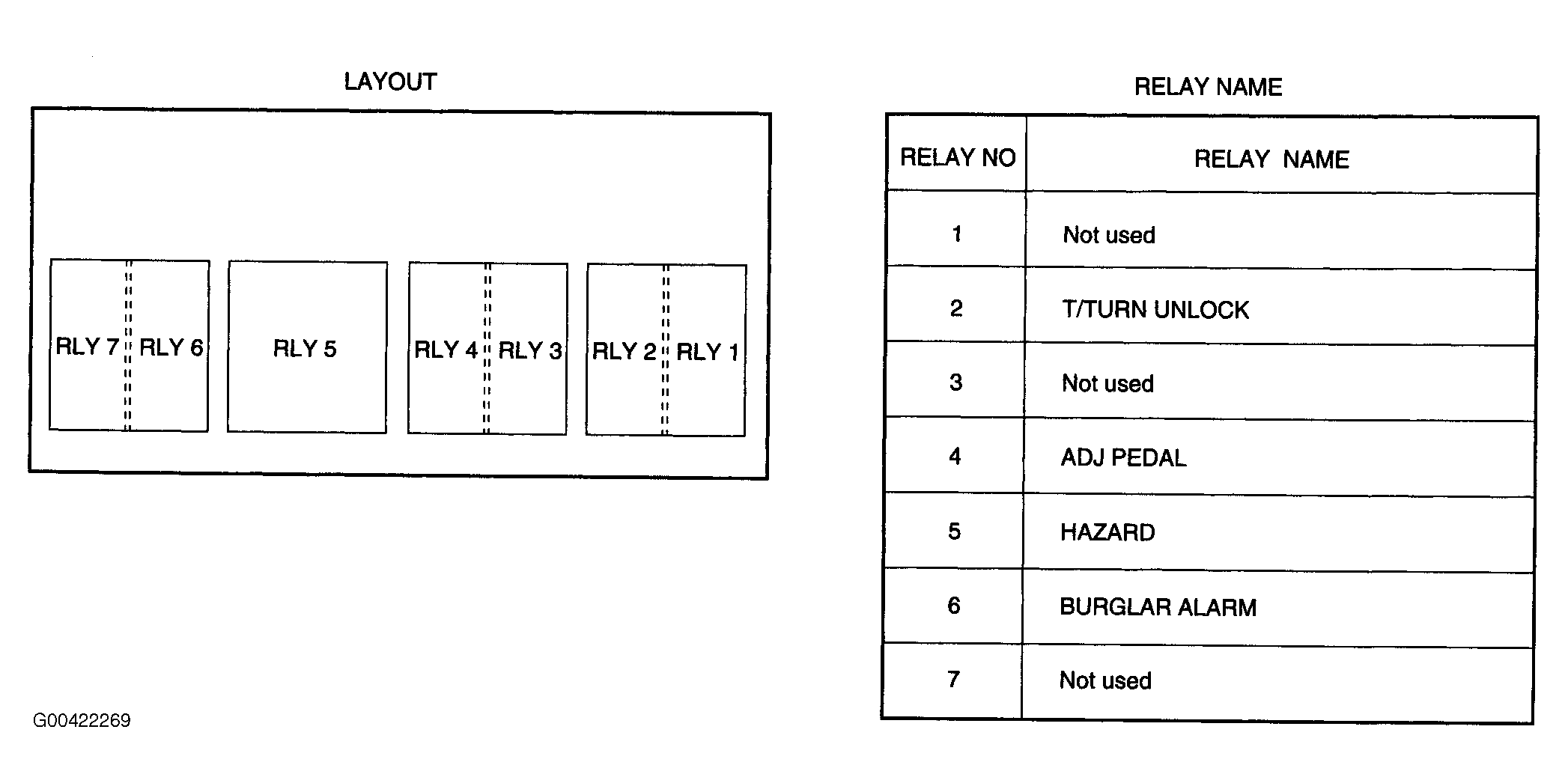

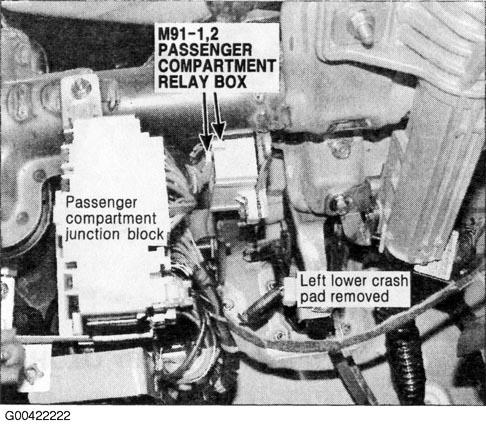

Fig 69: Passenger Compartment Relay Box (ICM Box)
Courtesy of HYUNDAI MOTOR CO.

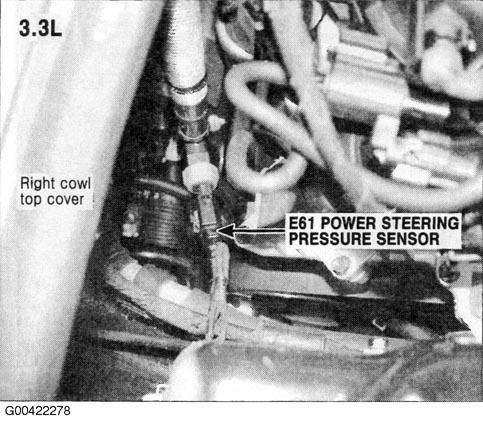

Fig 70: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

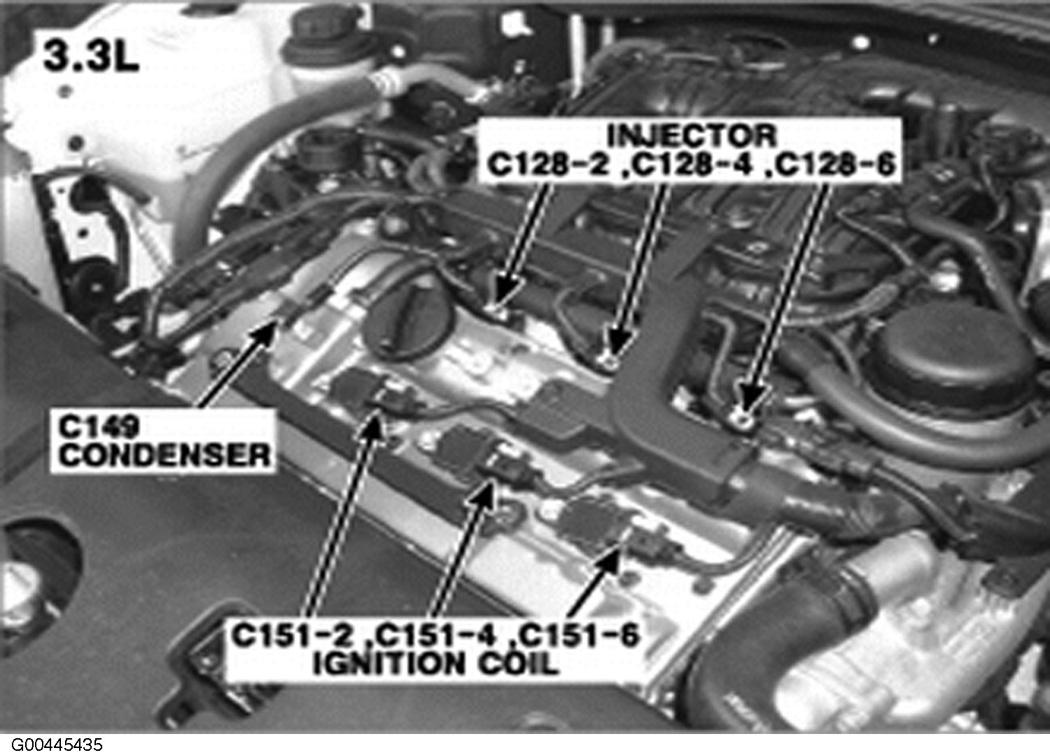

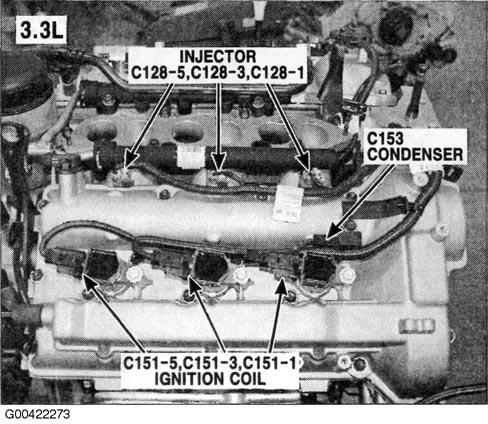

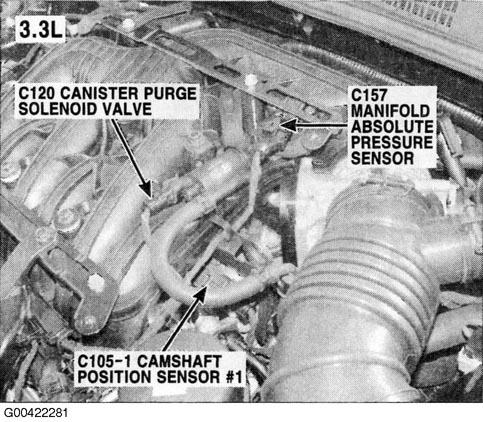

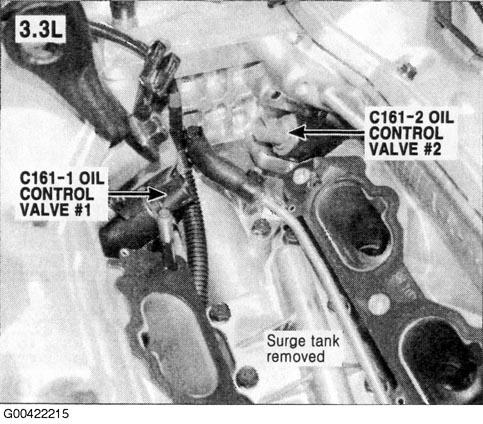

Fig 72: Top Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.

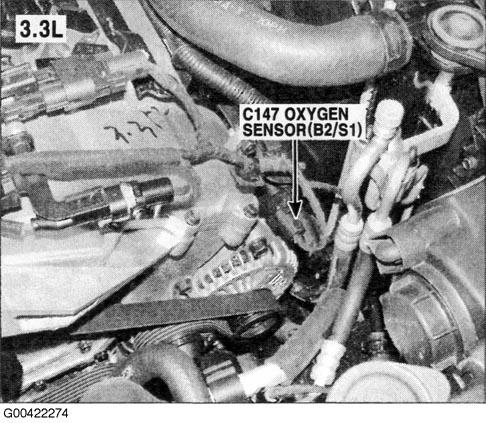

Fig 73: Left Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Front Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.

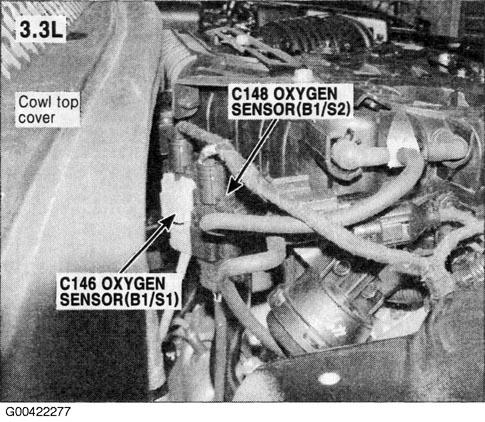

Fig 76: Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Right Rear Of Engine Compartment (3.3L)
Courtesy of HYUNDAI MOTOR CO.

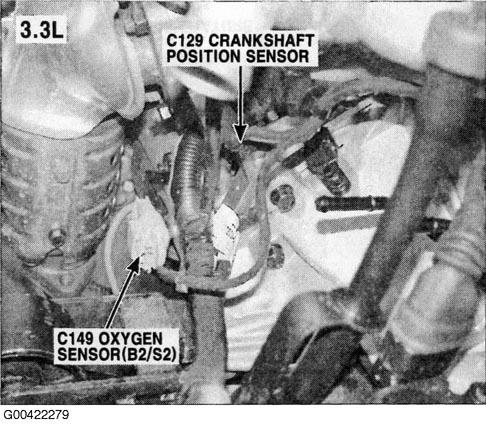

Fig 78: Left Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.

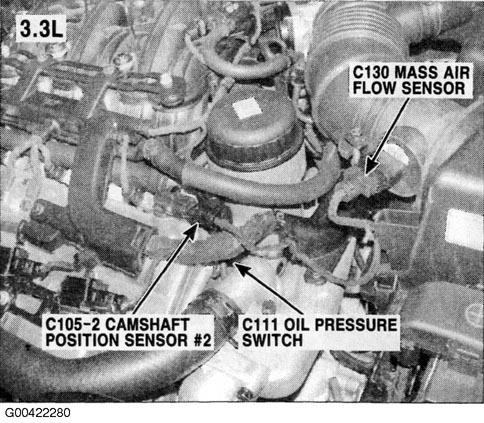

Fig 79: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.

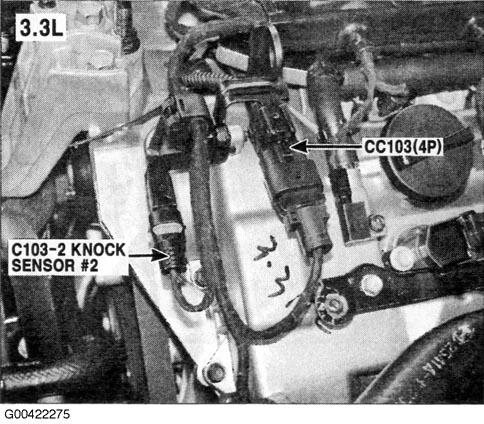

Fig 80: Top Rear Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.

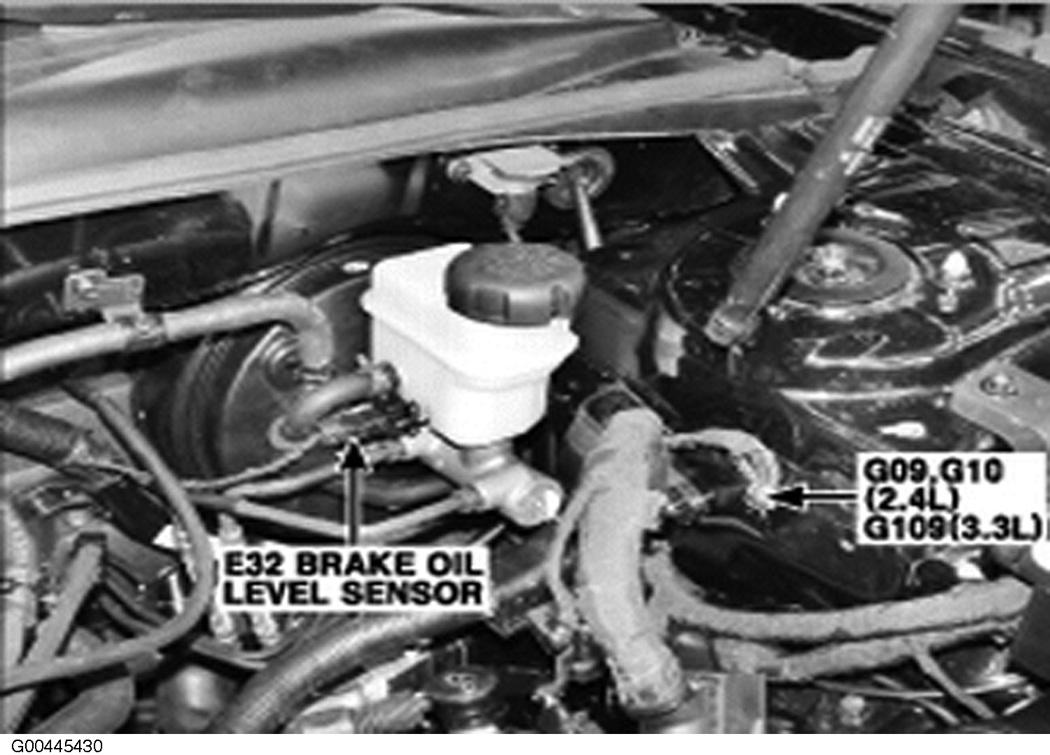

Fig 81: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

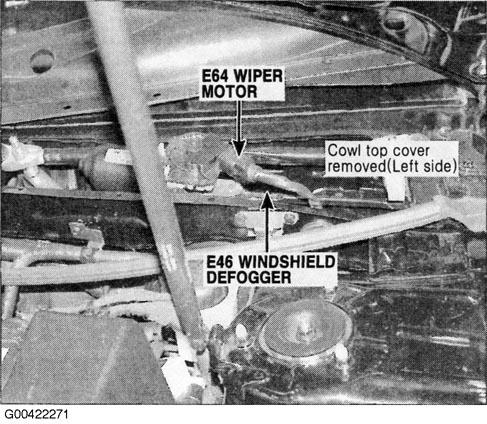

Fig 82: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 83: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

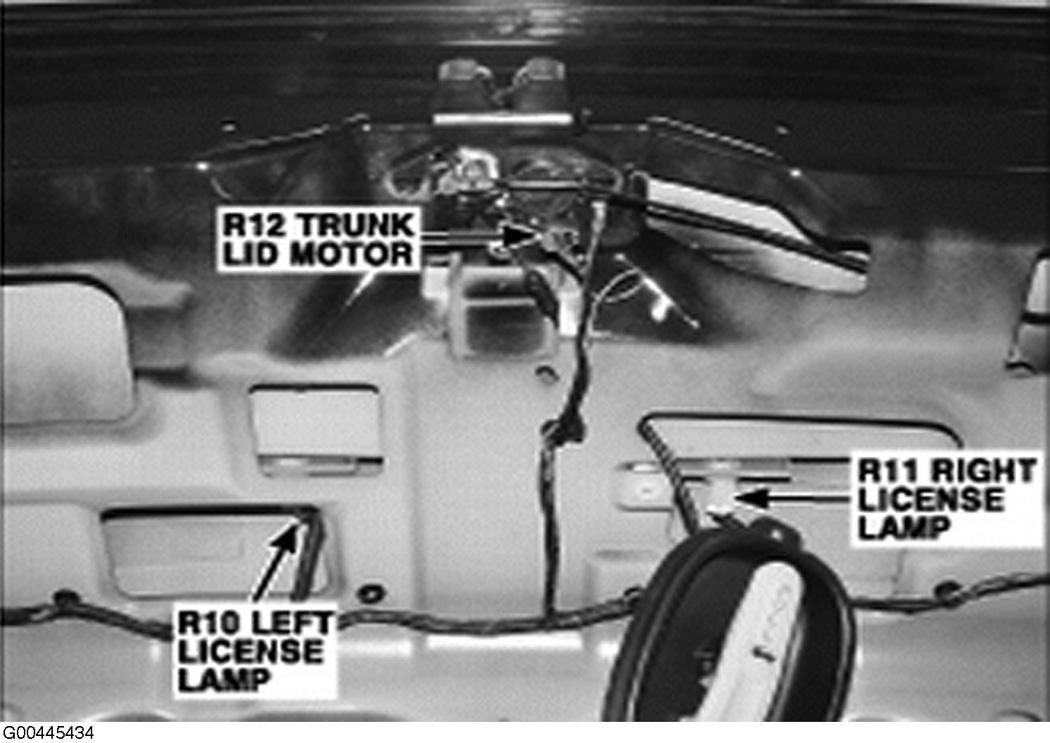

Fig 85: Center Rear Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

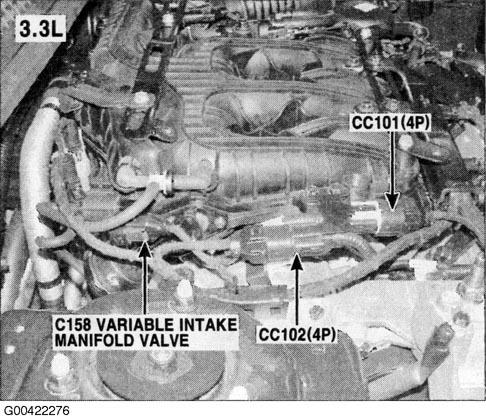

Fig 86: Top Of Engine (3.3L)
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

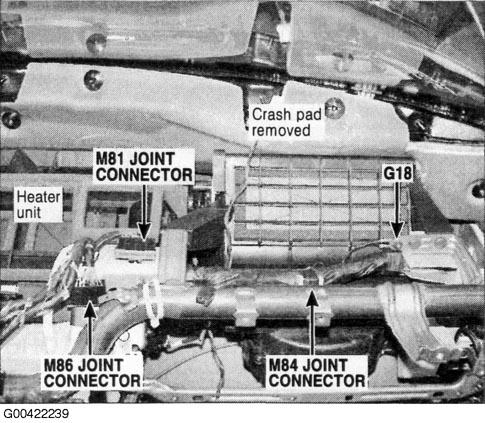

Fig 88: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
