Front Hub / Knuckle: Components

WARNING: This page is about a different car, the 2006 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

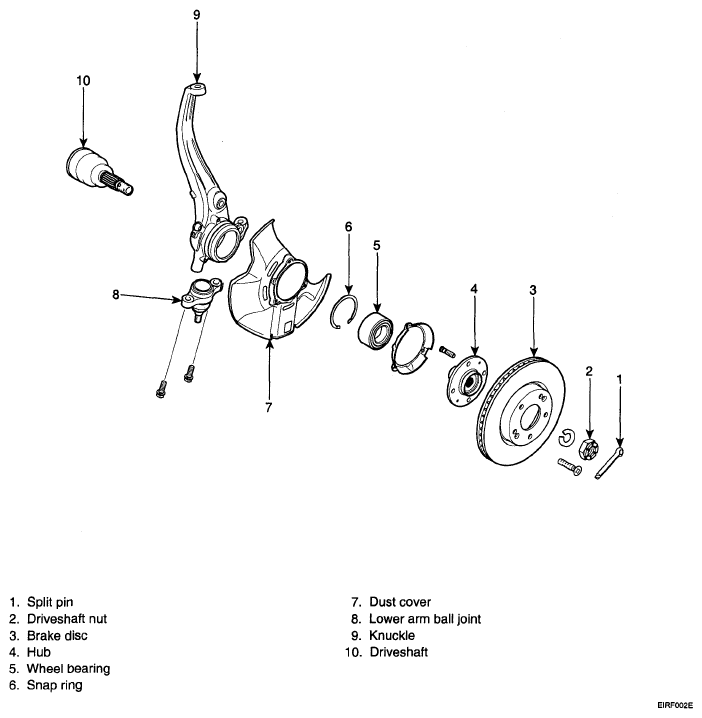

Fig 1: Identifying Front Hub / Knuckle Components
G04892220Courtesy of HYUNDAI MOTOR CO.
