Floor Console Replacement

WARNING: This page is about a different car, the 2006 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat (See REPLACEMENT ).
After remove the center cover (A).

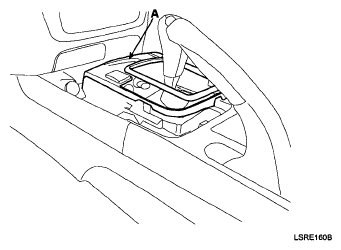

Fig 1: Identifying Center Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the floor console pad (A).

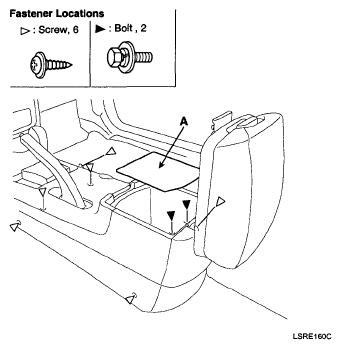

Fig 2: Identifying Floor Console Pad With Fastener Location
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screw, remove the floor console assembly(A).

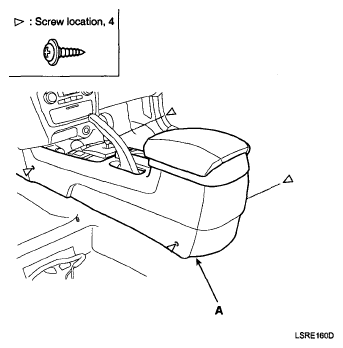

Fig 3: Identifying Floor Console Assembly With Mounting Screw Location
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
