Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

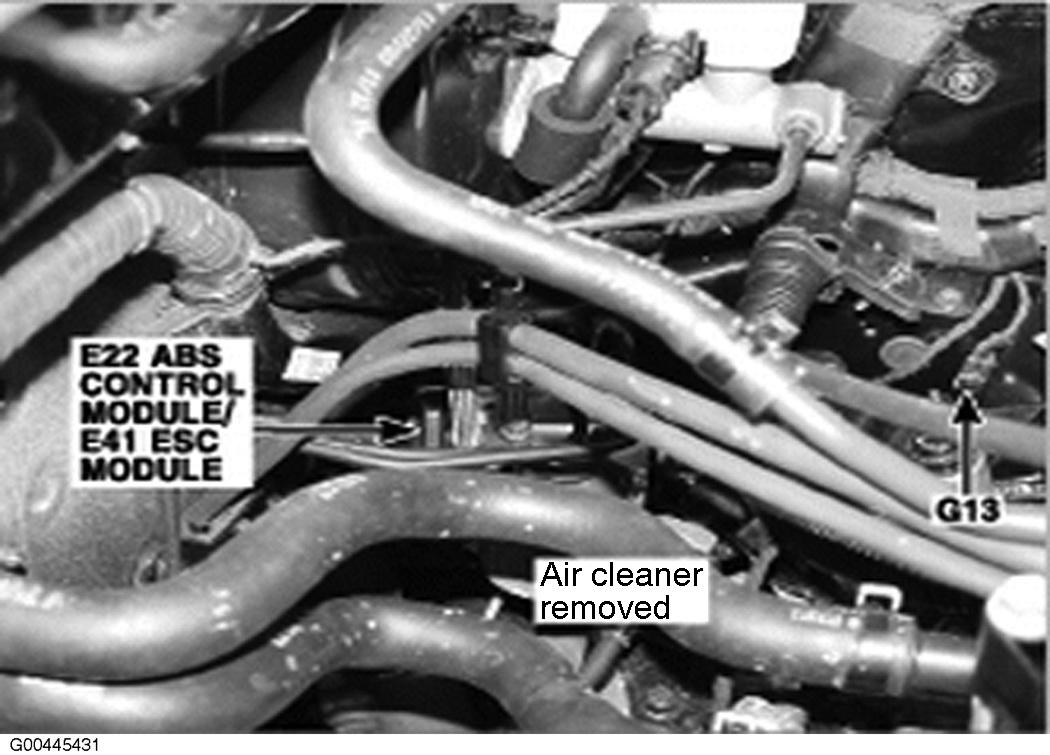

| ABS Control Module/ESC Module | At rear center of engine compartment. See Figure. |

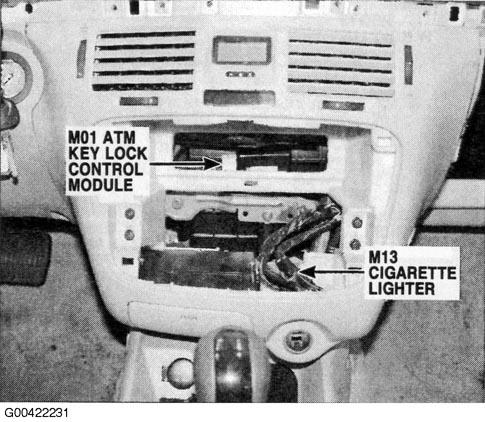

| ATM Key Lock Control Module | Behind lower center of dash. See Figure. |
| BCM (Body Control Module) | Under front of center console. See Figure. |

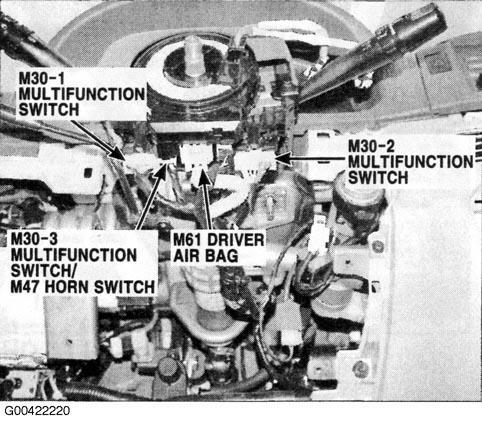

| Driver Air Bag | In steering column. See Figure. |

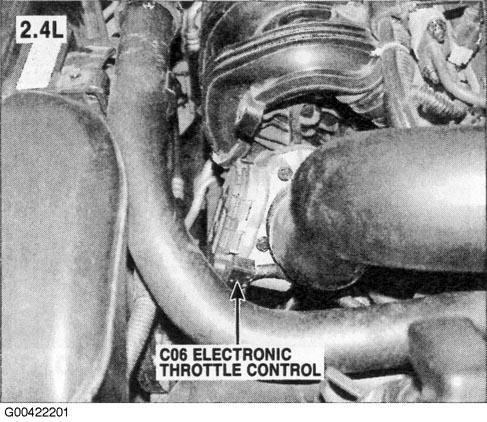

| Electronic Throttle Control (2.4L) | Top of engine. See Figure. |

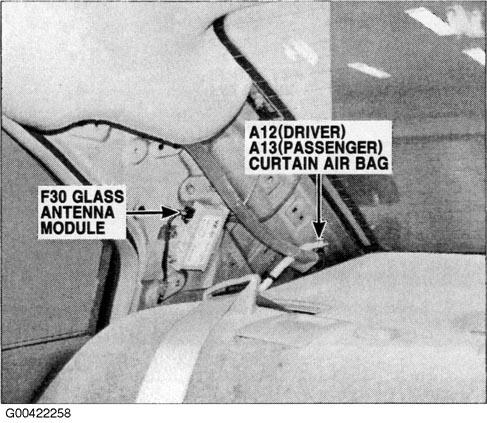

| Glass Antenna Module | In right "C" pillar. See Figure. |

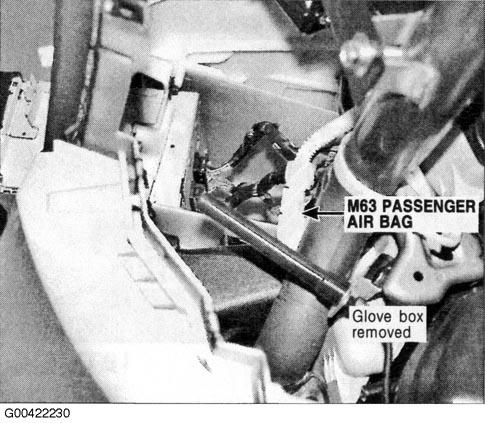

| Passenger Air Bag | Behind glove box. See Figure. |

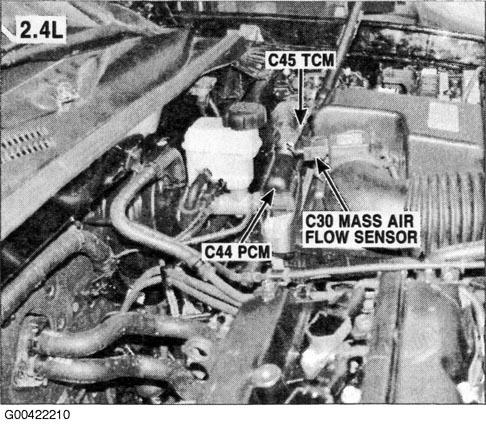

| PCM (2.4L) | Left rear of engine compartment. See Figure. |

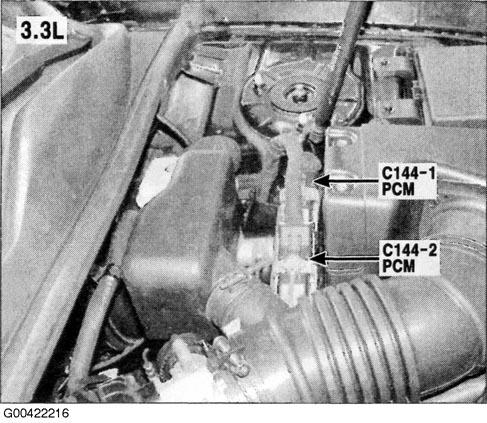

| PCM (3.3L) | Left rear of engine compartment. See Figure. |

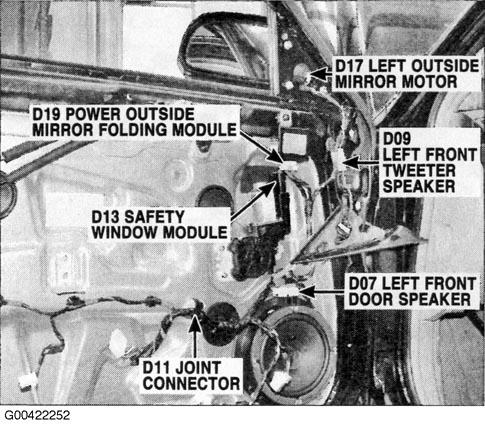

| Power Outside Mirror Folding Module | In driver's door. See Figure. |
| Safety Window Module | In driver's door. See Figure. |
| SMATRA (Immobilizer) | Near base of steering column. |

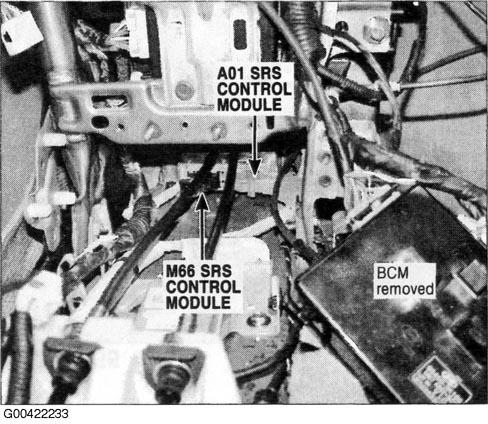

| SRS Control Module | Under front of center console. See Figure. |

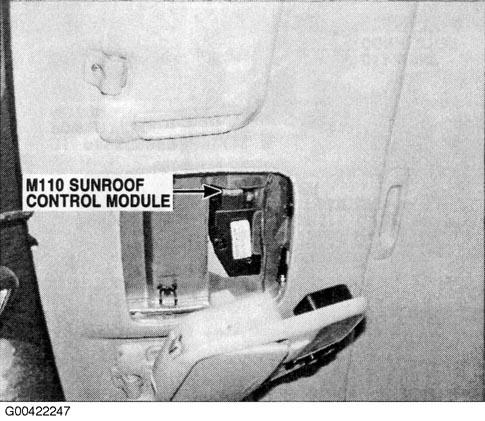

| Sunroof Control Module | Under roof console. See Figure. |
| TCM | Left rear of engine compartment. See Figure. |

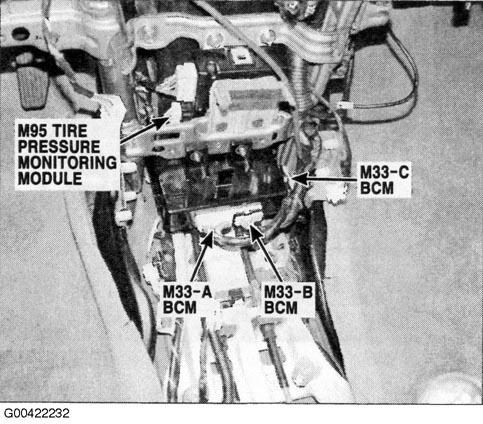

| Tire Pressure Monitoring Module | Under left front of center console. See Figure. |
