Motor Replacement

  1. Remove the over head console (See ROOF TRIM ).
    NOTE:
    • Confirm the position of guide whether it is closed or not when you remove the motor.
  2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).

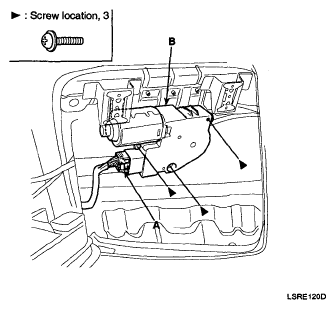

    Fig 1: Identifying Motor Connector, Motor And Mounting Screw Location
    G04892852Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
