Body & Frame: Windows: Exterior: Fender: Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

Remove the following items.
- Side garnish (See SIDE GARNISH AND SIDE SILL REPLACEMENT )
- Front bumper (See FRONT BUMPER )
- Wheel guard (See FRONT MUD GUARD AND WHEEL GUARD )
- Headlamp.
Installation is the reverse of removal.

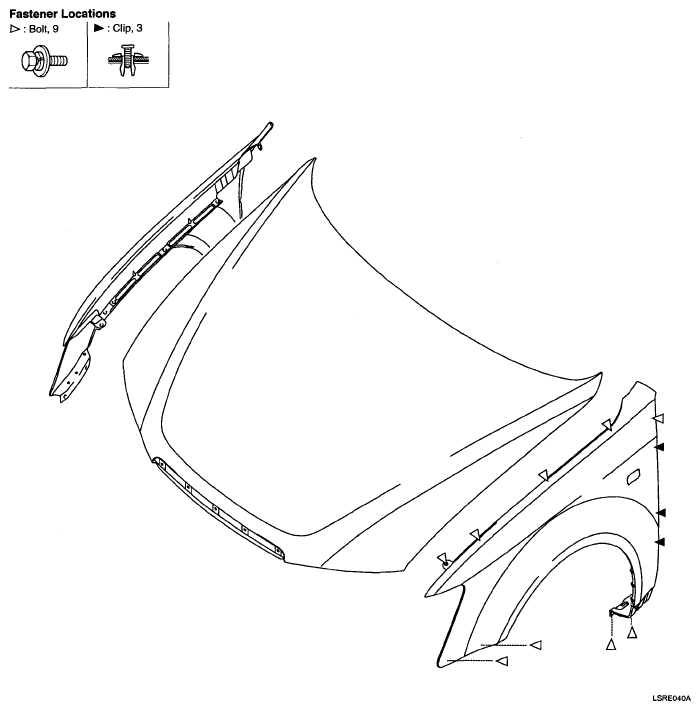

Fig 1: Identifying Fastener Location On Fender
Courtesy of HYUNDAI MOTOR CO.
