Engine Block: Components

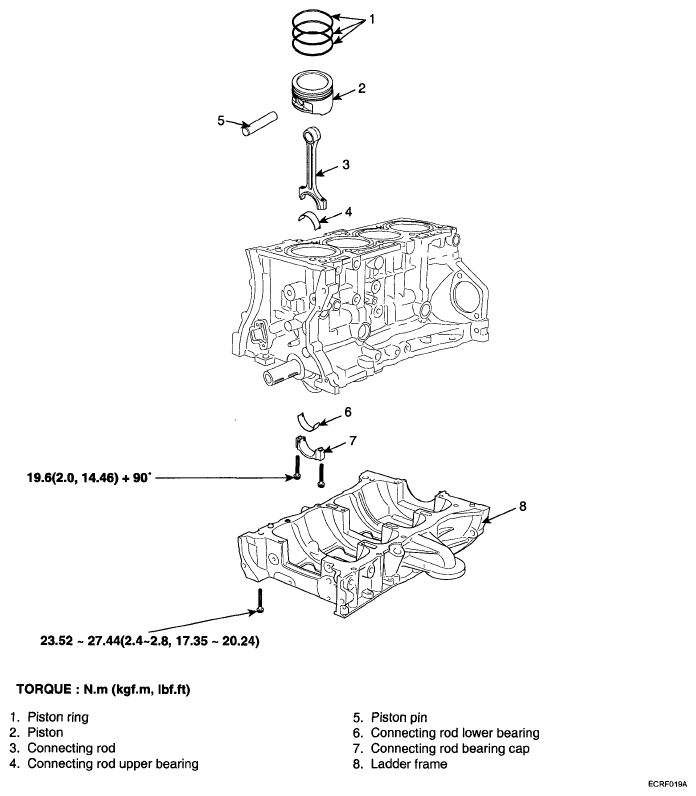

Fig 1: Exploded View Of Engine Block Components With Torque Specifications (1 Of 2)
G04890362Courtesy of HYUNDAI MOTOR CO.

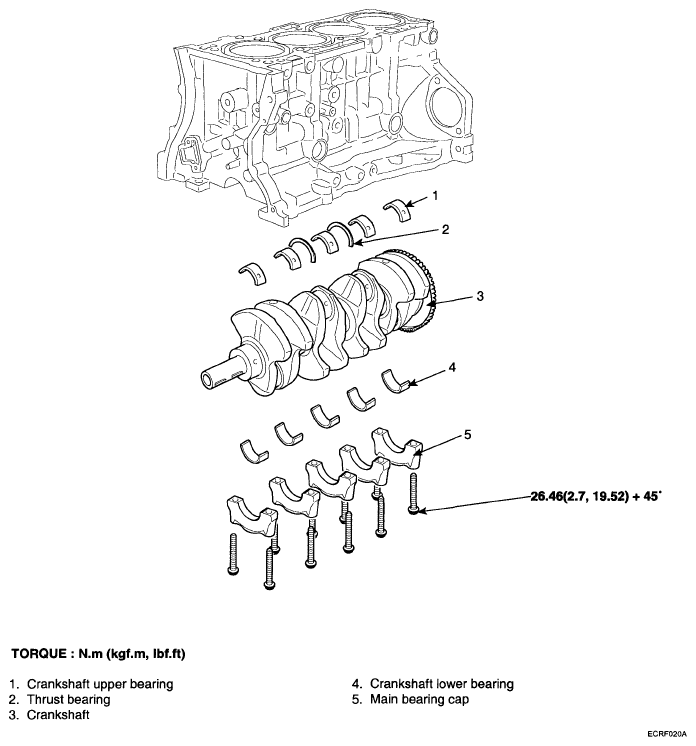

Fig 2: Exploded View Of Engine Block Components With Torque Specifications (2 Of 2)
G04890363Courtesy of HYUNDAI MOTOR CO.
