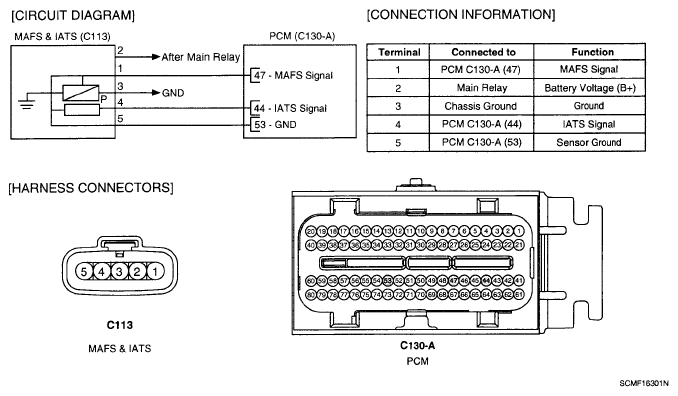

Home >> Hyundai >> 2007 >> Santa Fe SE, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6DA-GSL 3.3) >> Gasoline Engine Control System >> Mass Air Flow Sensor (MAFS) >> Inspection >> Schematic Diagram
