Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

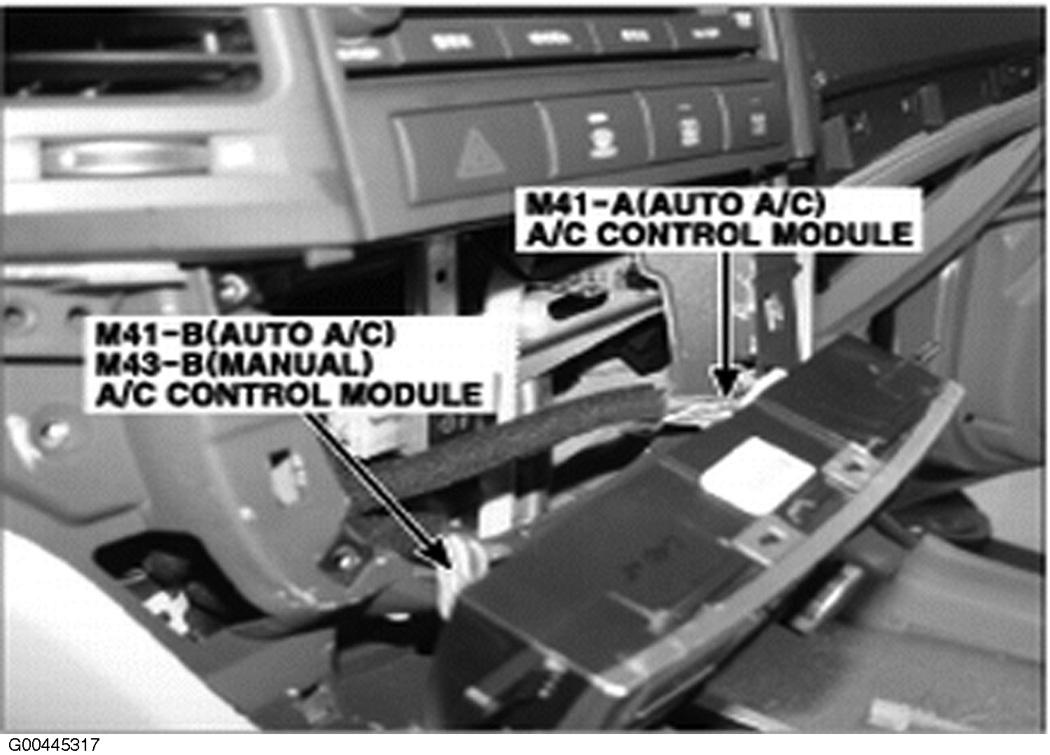

| A/C Control Module (Auto) | Behind center of dash. See Figure. |
| A/C Control Module (Manual) | Behind center of dash. See Figure. |

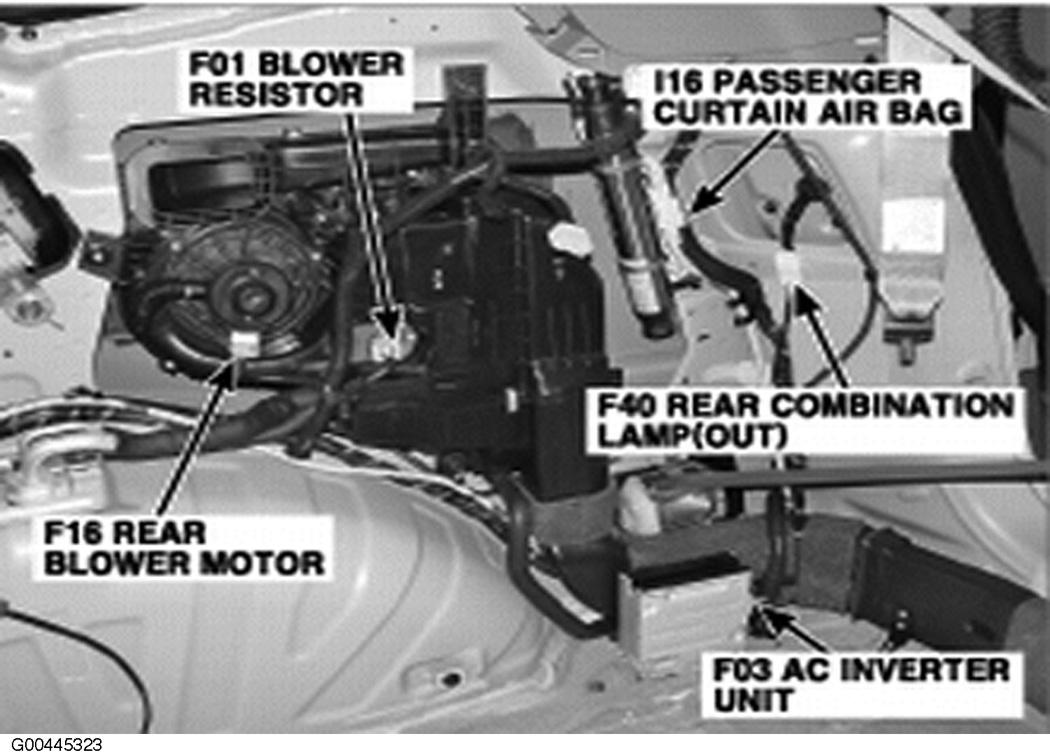

| A/C Inverter Unit | Right rear wheelwell, behind trim panel. See Figure. |

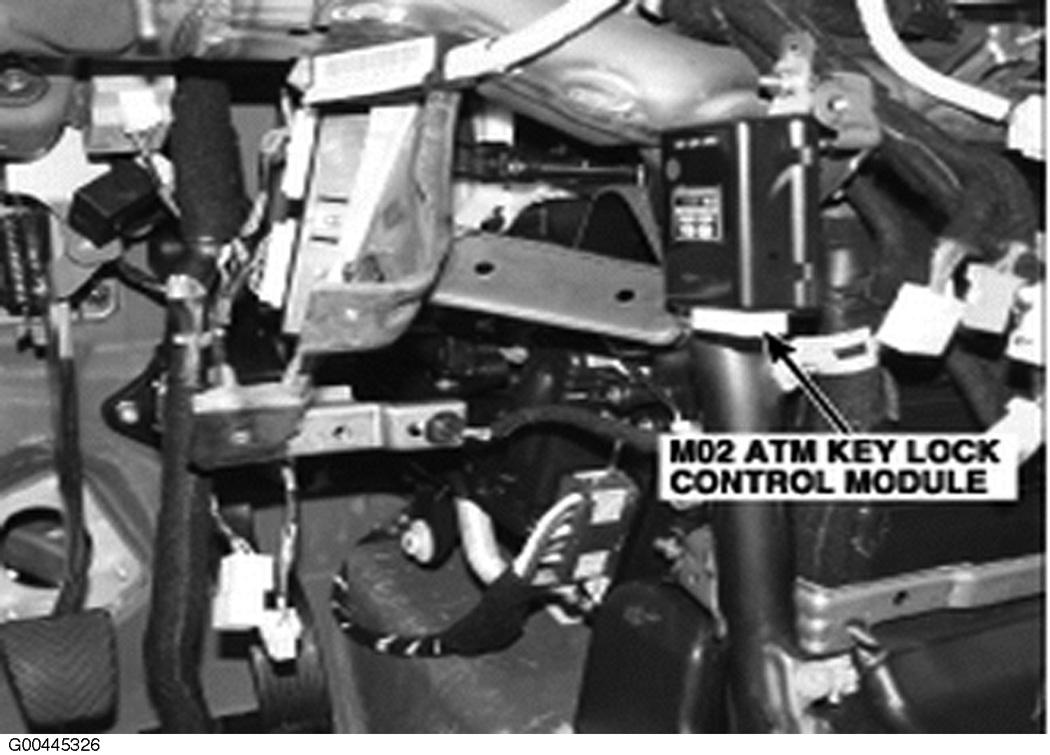

| ATM Key Lock Control Module | Below center of dash. See Figure. |

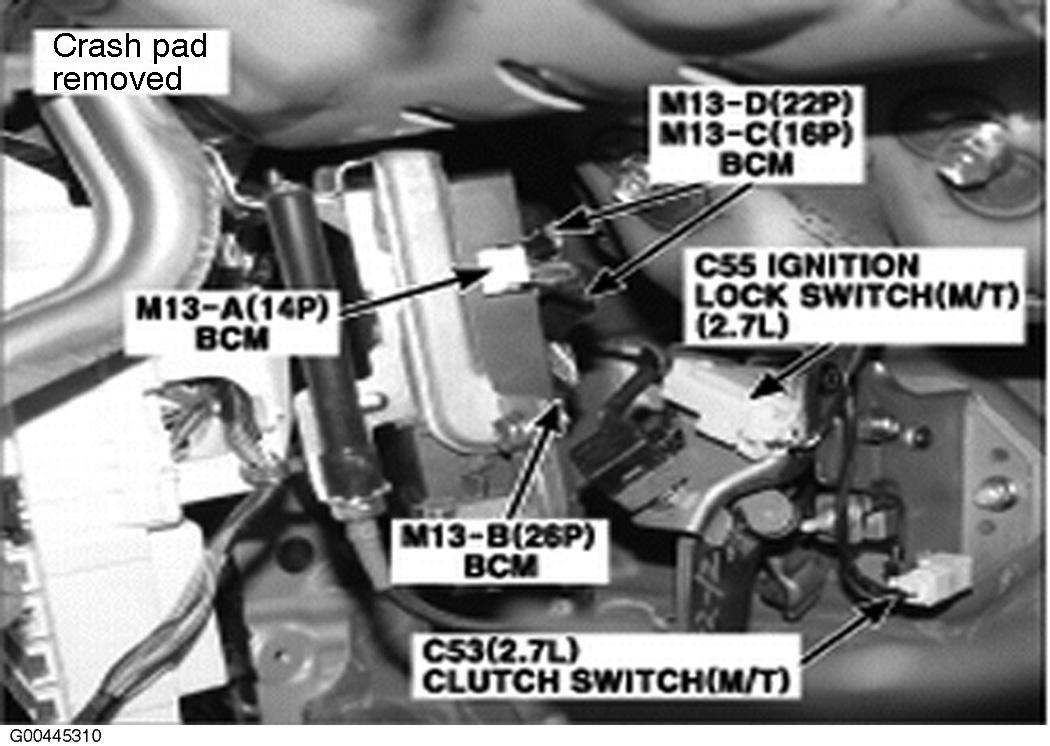

| BCM | Below left side of dash. See Figure. |

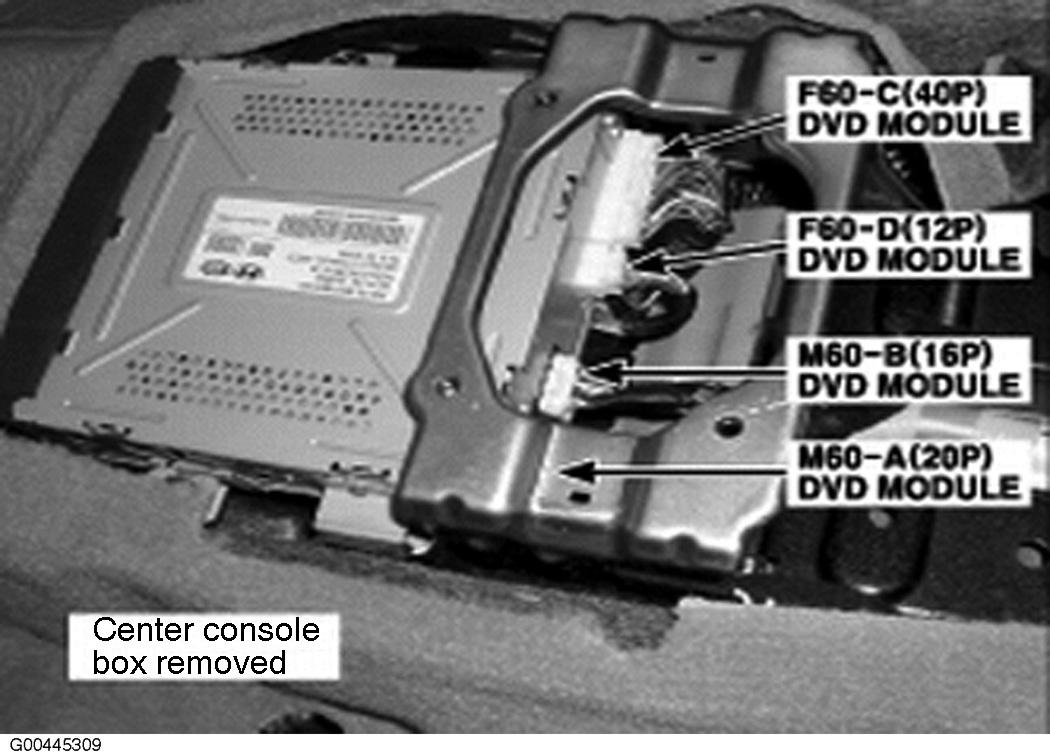

| DVD Module | Below center console. See Figure. |

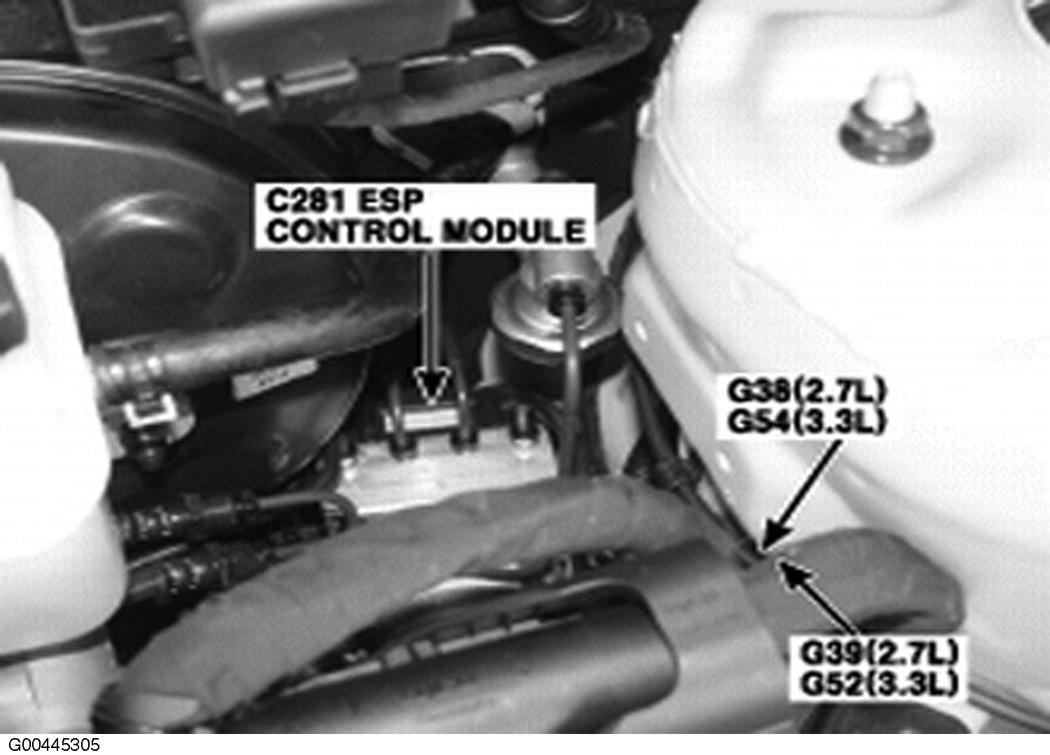

| ESP Control Module | Left rear of engine compartment, below brake master cylinder. See Figure. |

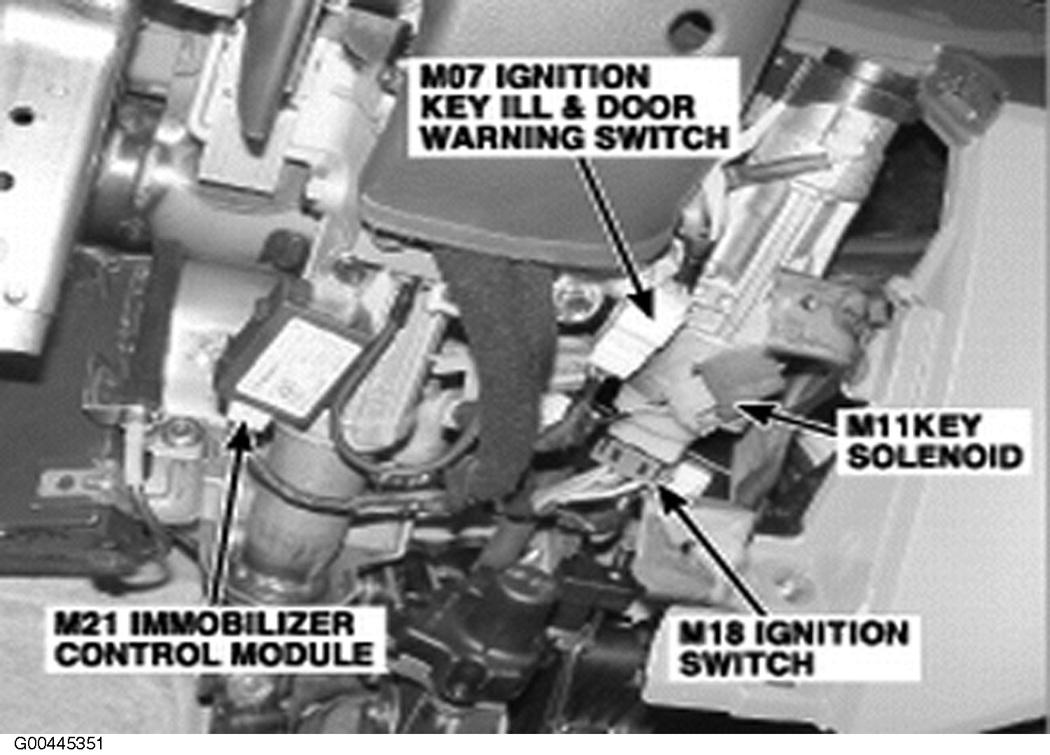

| Immobilizer Control Module | Base Of Steering Column. See Figure. |

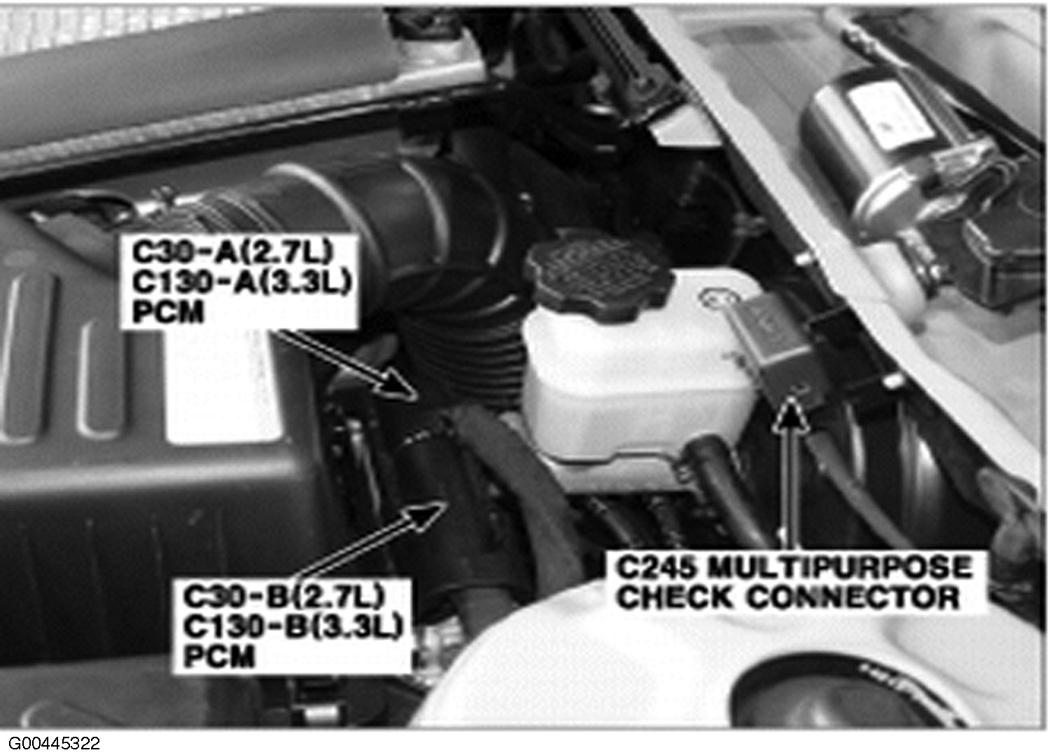

| PCM | Left rear of engine compartment. See Figure. |

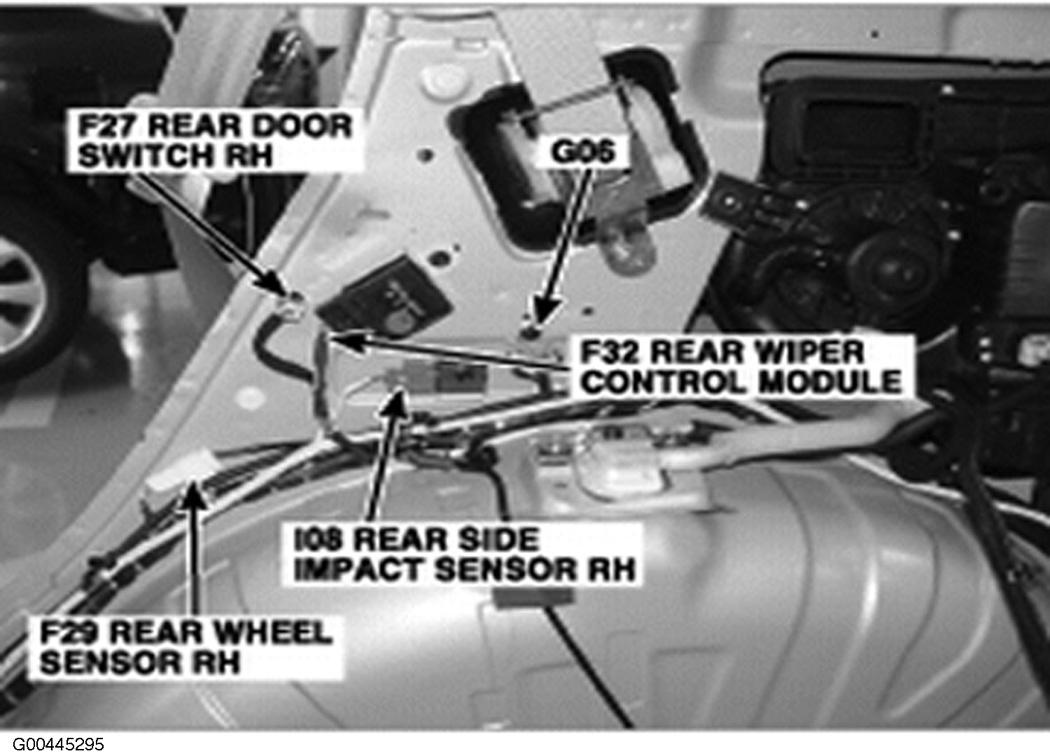

| Rear Wiper Motor Control Module | Base of right "B" pillar. See Figure. |
| Seat Warmer Control Module | Under respective seat. |

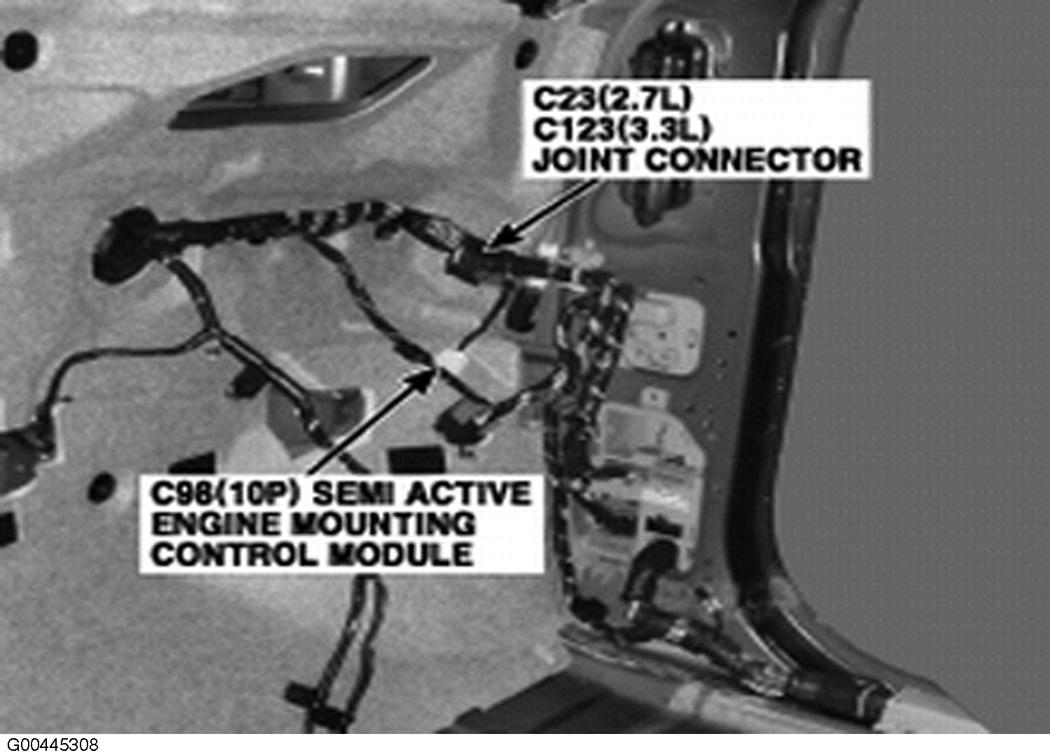

| Semi Active Engine Mounting Control Module | Below right end of dash. See Figure. |

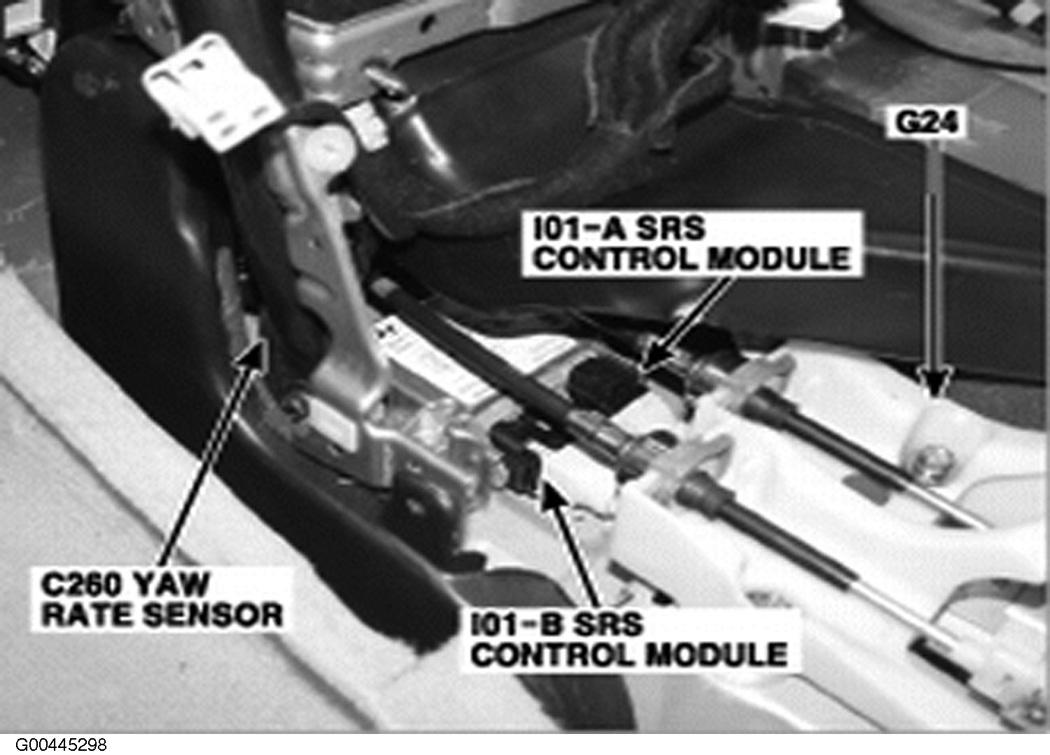

| SRS Control Module | Below front of center console. See Figure. |

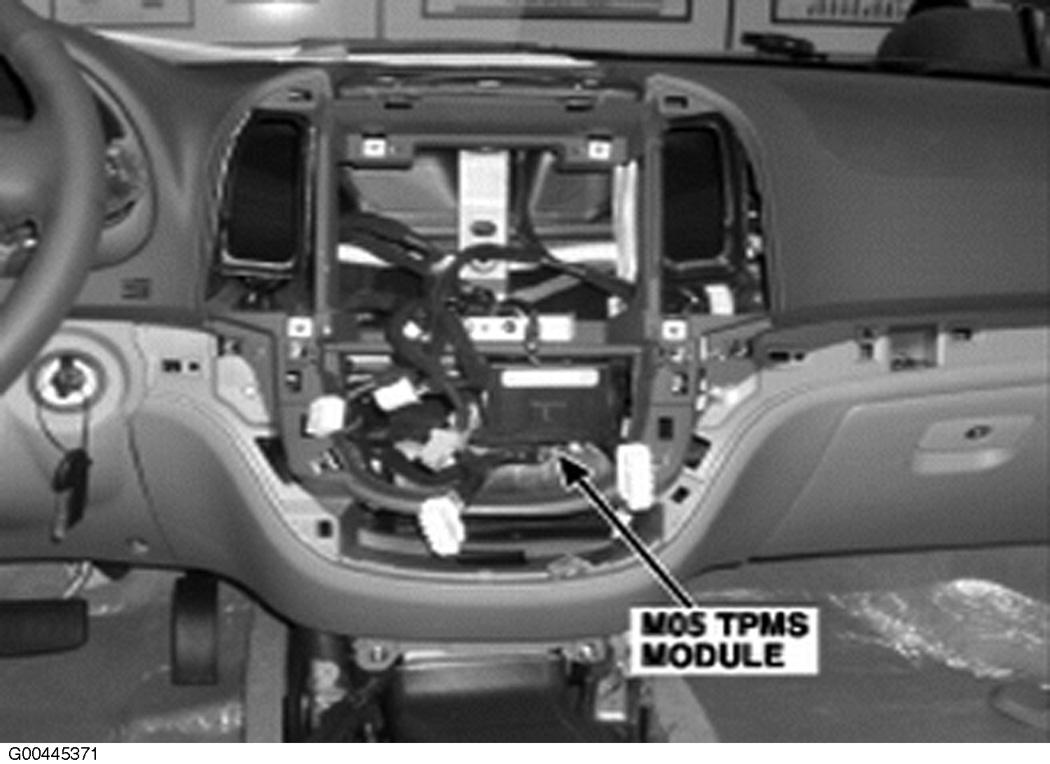

| TPMS Module | Behind center of dash. See Figure. |

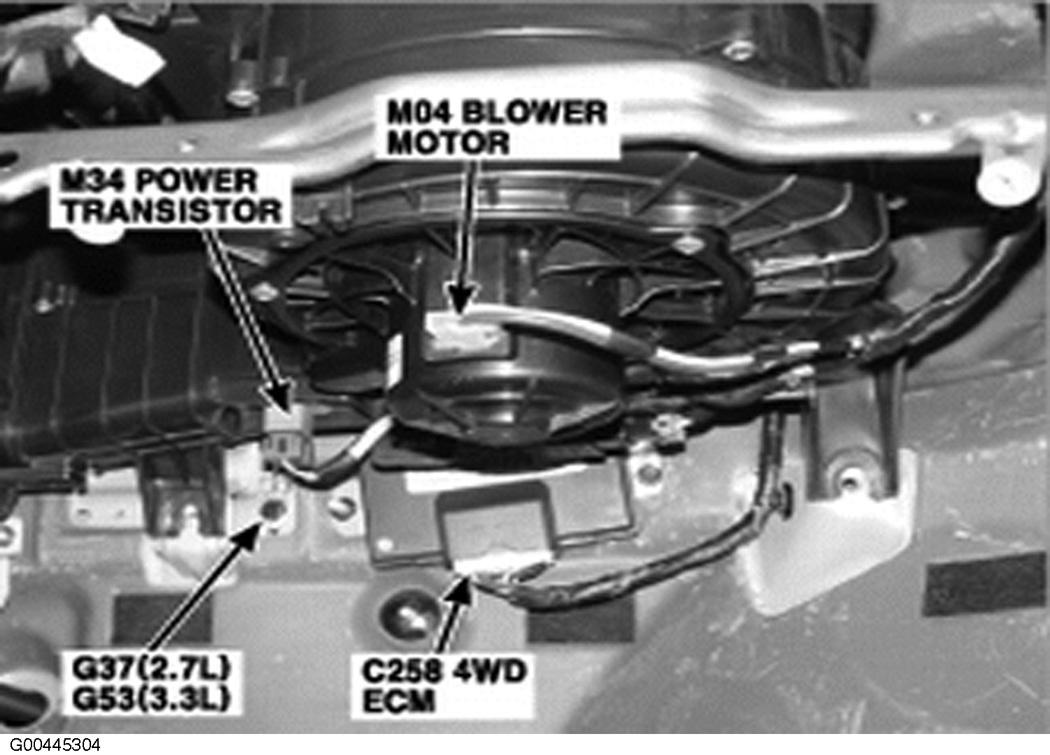

| 4WD ECM | Behind right side of dash. See Figure. |
