Charging System Test Procedure

Press ENTER to begin charging system test.

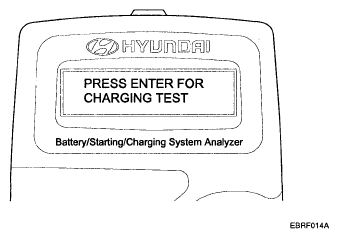

Fig 1: Battery Analyzer Screen Display - CHARGING TEST
Courtesy of HYUNDAI MOTOR CO.
ENTER button is pressed, the tester displays the actual voltage of alternator.
Press ENTER to test the charging system.

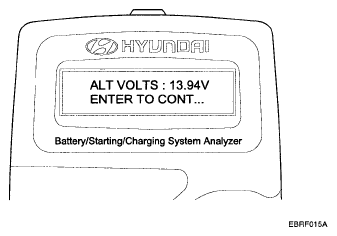

Fig 2: Battery Analyzer Screen Display - ENTER
Courtesy of HYUNDAI MOTOR CO.
Turn off all electrical load and rev engine for 5 seconds with pressing the accelerator pedal.

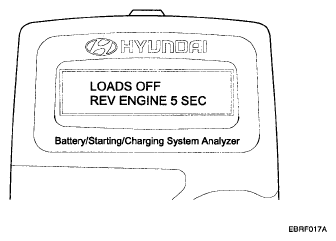

Fig 3: Battery Analyzer Screen Display - LOADS OFF REV ENGINE
Courtesy of HYUNDAI MOTOR CO.
Press ENTER.

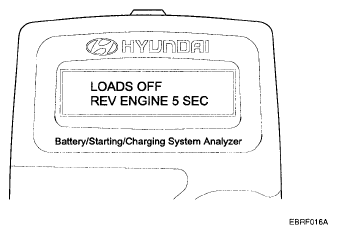

Fig 4: Battery Analyzer Screen Display - LOADS OFF ENGINE
Courtesy of HYUNDAI MOTOR CO.
The MICRO 570 analyzer charging system output at idle for comparison to other readings.

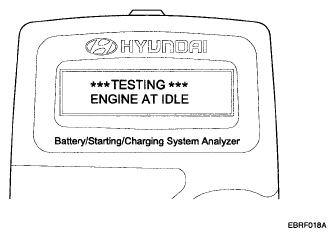

Fig 5: Battery Analyzer Screen Display - ENGINE IDLE
Courtesy of HYUNDAI MOTOR CO.
Take a relevant action according to the test results by referring to the table below after shutting off the engine and disconnect the tester clamps from the battery.

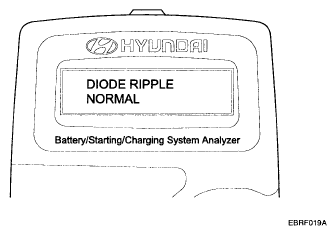

Fig 6: Battery Analyzer Screen Display - DIODE RIPPLE NORMAL
Courtesy of HYUNDAI MOTOR CO.
