Component Location

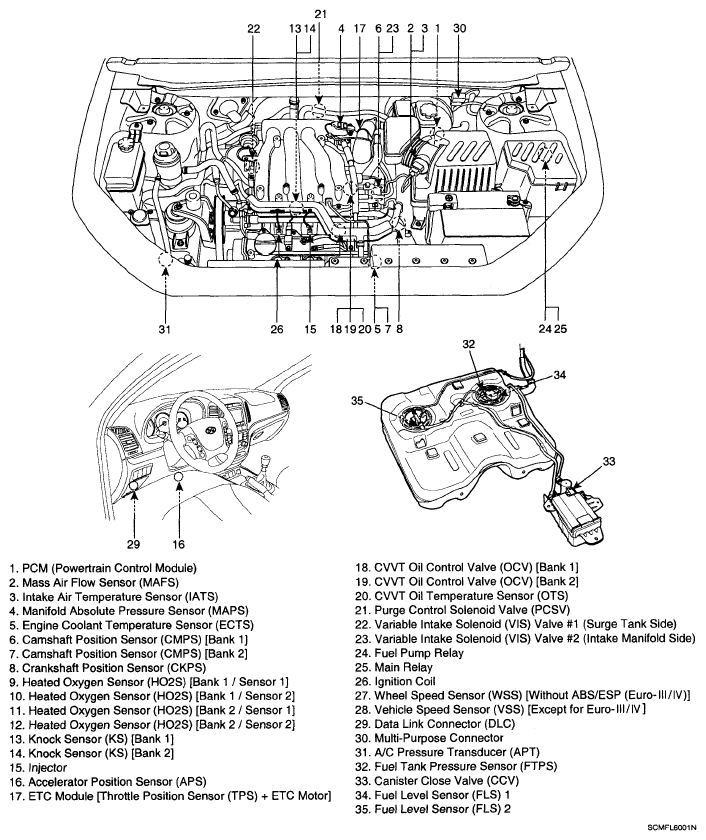

Fig 1: Identifying Gasoline Engine Control System Component Location

Courtesy of HYUNDAI MOTOR CO.

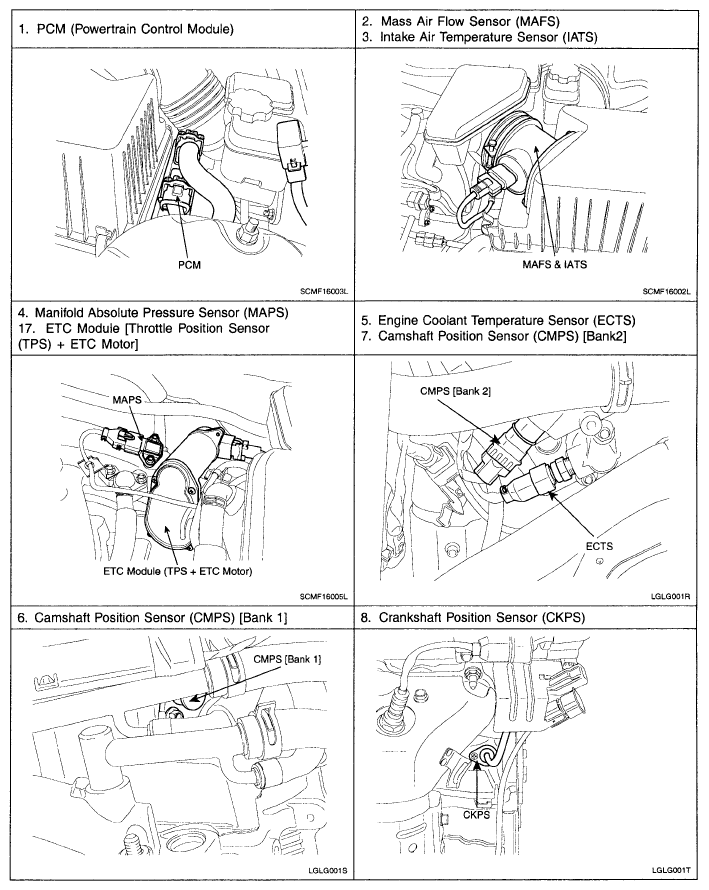

Fig 2: Identifying Sensors (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

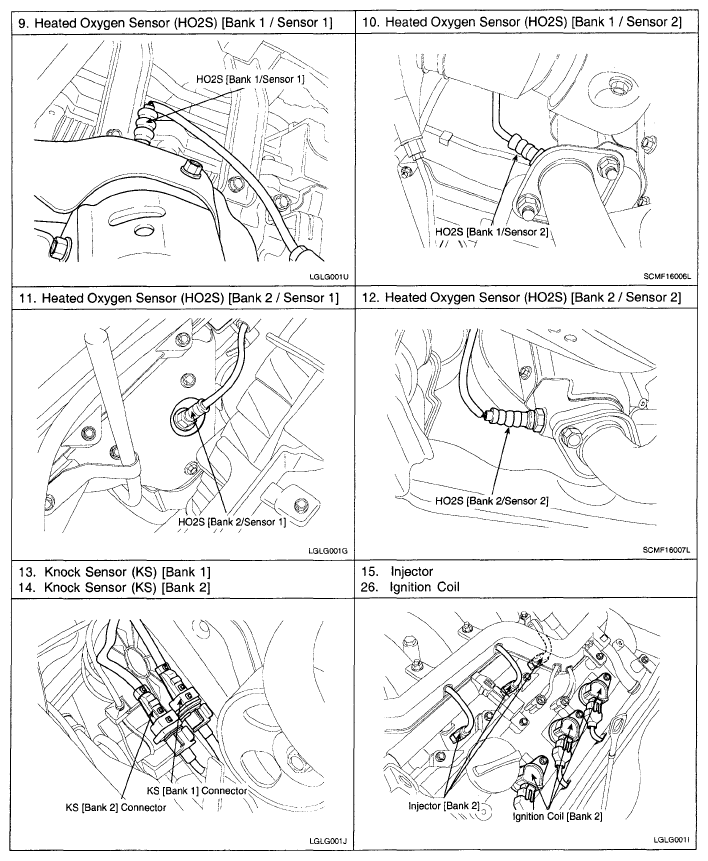

Fig 3: Identifying Sensors (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

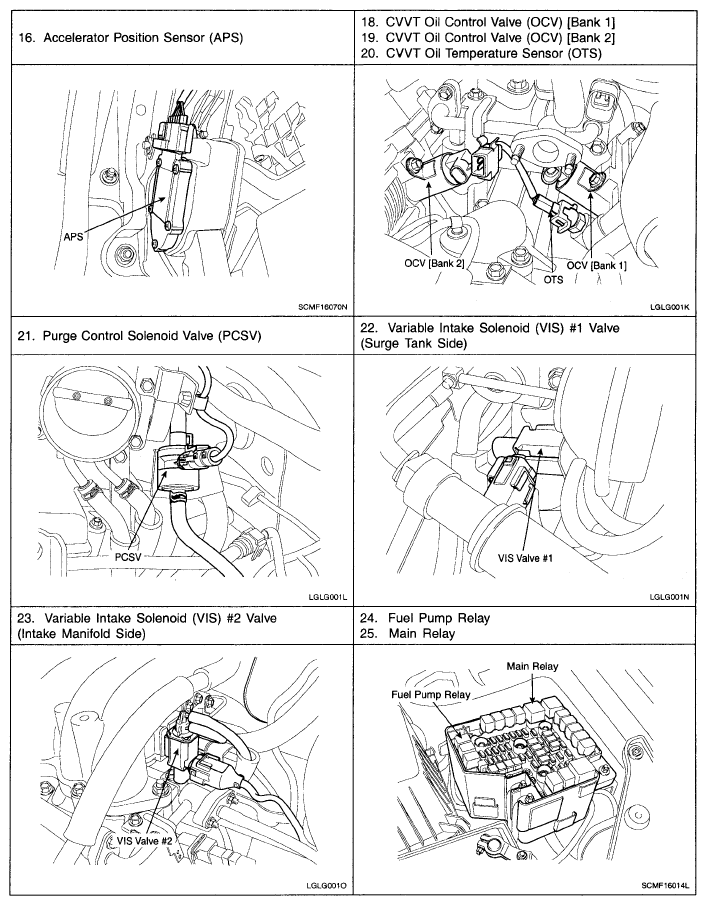

Fig 4: Identifying Sensors (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

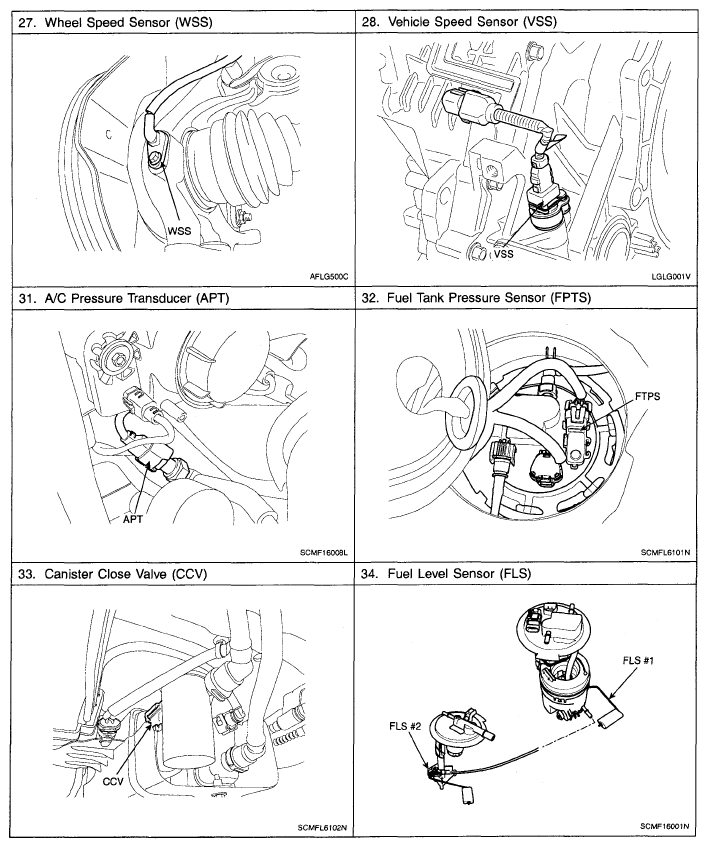

Fig 5: Identifying Sensors (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
