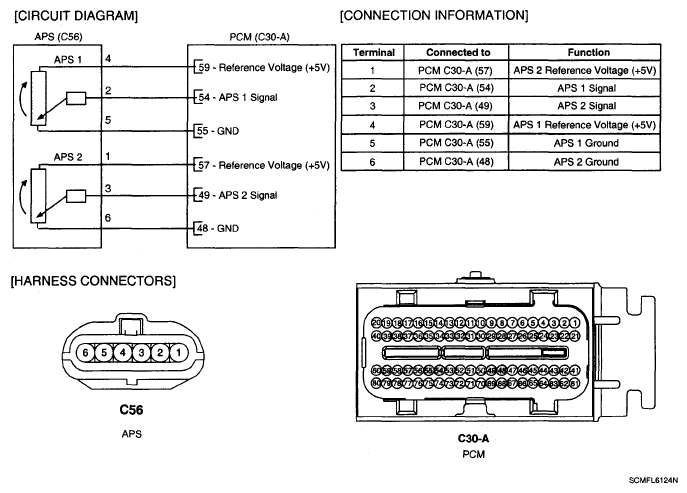

Home >> Hyundai >> 2007 >> Santa Fe GLS, AWD, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6EA-GSL 2.7) >> Gasoline Engine Control System >> Accelerator Position Sensor (APS) >> Inspection >> Circuit Diagram
