Monitor SCANTOOL Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON"
  3. Press the brake pedal.
  4. Monitor the "BRAKE SWITCH" parameter on the scantool.

    Specification : Lateral G sensor: ± 0 G, YAW rate Sensor: ± 0 deg/s

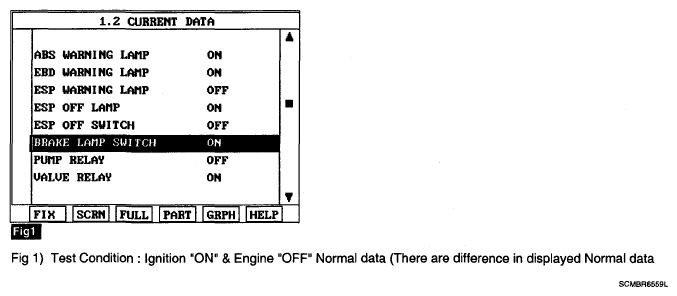

    Fig 1: Monitoring Brake Switch Parameter On Scantool Display
    G05350777Courtesy of HYUNDAI MOTOR CO.
  5. Whenever brake pedal is pushed down, is the brake switch's scantool data changed ON/OFF?

    YES

    • Fault is intermittent caused by poor connection in Yaw Rate & Lateral G sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination.

    NO

    • Go to "W/Harness Inspection" procedure.
