Esp/ESC System: Components

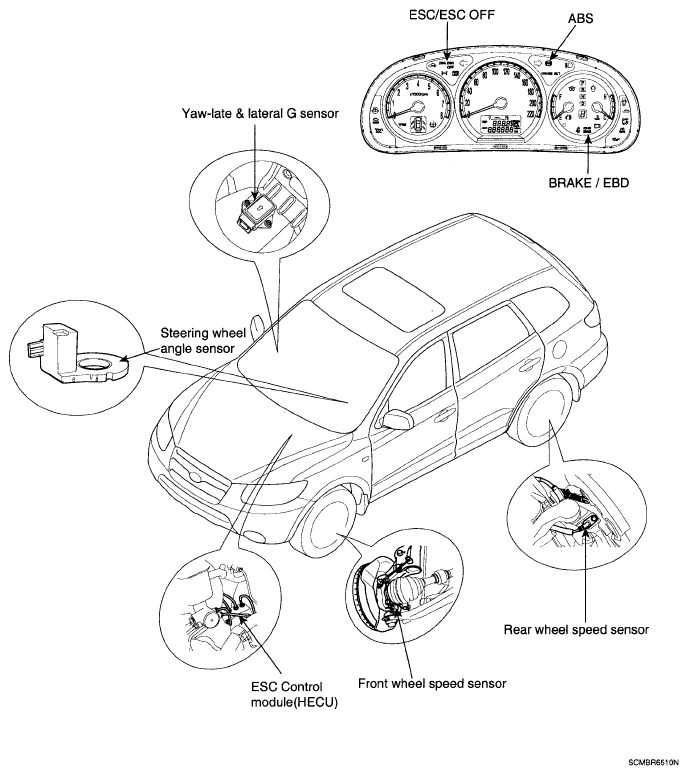

Fig 1: Identifying ESC (Electronic Stability Control) Components

G05350717

Courtesy of HYUNDAI MOTOR CO.
