Outside Handle Replacement

  1. Remove the tailgate trim. (See TAILGATE TRIM REPLACEMENT )
  2. After loosening the mounting bolt and nuts, then remove the tailgate garnish (A).
    Fig 1: Identifying Tailgate Garnish Mounting Bolt And Nuts With Fastener Locations
    G05324498Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the outside handle rod (A).
  4. Loosen the outside handle (B) mounting bolts.

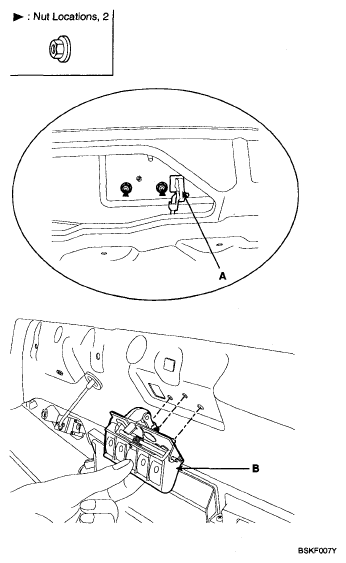

    Fig 2: Identifying Outside Handle Rod And Mounting Bolts With Fastener Locations
    G05324499Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
NOTE:
  • Make sure the tailgate opens properly and locks securely.
