Ground Circuit Inspection

Ignition "OFF".
Connect the "A/T CONTROL RELAY" connector.
Measure the resistance between terminal "2" of the "A/T CONTROL RELAY" harness connector and chassis ground.
Specification : Approx. 0 Ω

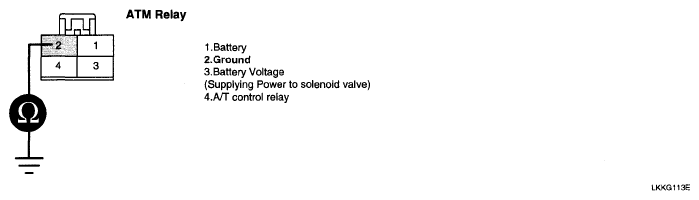

Fig 1: Measuring Resistance Between Terminal 2 Of A/T Control Relay Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace Front Area Module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
