Component Inspection

CHECK SOLENOID VALVE
1. Ignition "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector.
3. Measure resistance between terminal "5" and terminal "12" of the ATM SOLENOID VALVE harness connector.
  Specification: Approximately 2.7~3.4 Ω [20°C (68°F)]

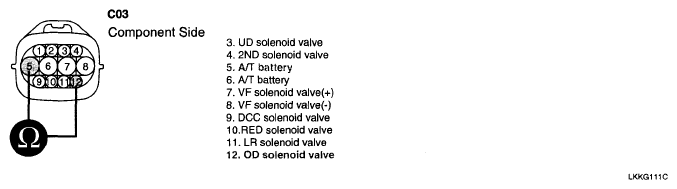

  Fig 1: Measuring Resistance Between Terminal 5 And Terminal 12 Of ATM Solenoid Valve Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within specification?
  YES
  - Go to " 2CHECK PCM/TCM" as below.
  NO
  - Replace OD SOLENOID VALVE as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CHECK PCM/TCM
1. Connect scantool to data link connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select A/T solenoid valve actuator test and operate actuator test.
4. Can you hear operating sound for OD SOLENOID VALVE actuator testing function?
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Replace PCM/TCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0 mph (0 km/h)
5. Throttle position sensor < 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
