Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "PRESS CONTROL SOL. VALVE" parameter on the scantool.
  4. Shift gear at each position.

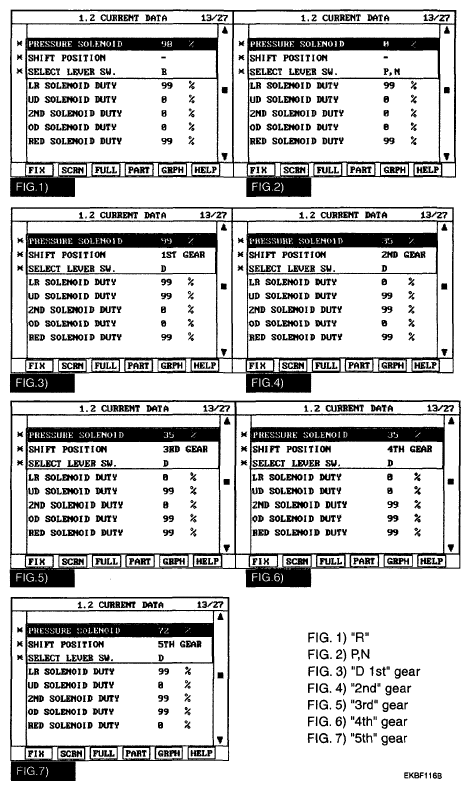

    Fig 1: Monitor Scantool Data - Pressure Solenoid
    G04880147Courtesy of HYUNDAI MOTOR CO.
  5. Does "PRESS CONTROL SOL DUTY " follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
