Component Inspection

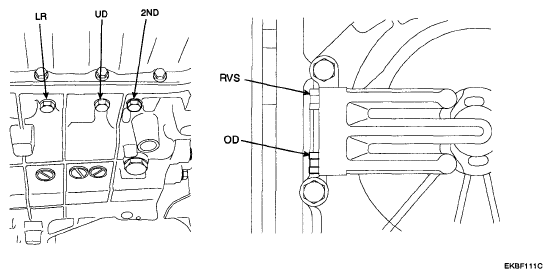

Fig 1: Identifying transmission oil pressure gauge ports

Courtesy of HYUNDAI MOTOR CO.

Connect oil pressure gauge to "OD" and "2nd" and "DIR" port.
Engine "ON".
Drive a car with gear position "5".
Compare it with reference data as below.
Specification : refer to Standard Oil Pressure Reference Data table (DTC P0731).
Is oil pressure value within specification?
YES
- Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
