Component Inspection

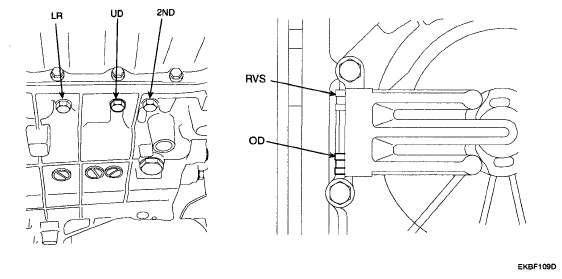

Fig 1: Identifying Transmissin Oil Pressure Gauge Ports

Courtesy of HYUNDAI MOTOR CO.

Connect oil pressure gauge to "UD" and "OD" and "RED" port.
Engine "ON".
Drive a car with gear position 3 in "SPORTS MODE".
Compare it with reference data as below.
Specification : refer to Standard Oil Pressure Reference Data table (DTC P0731).
Is oil pressure value within specifications?
YES
- Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
