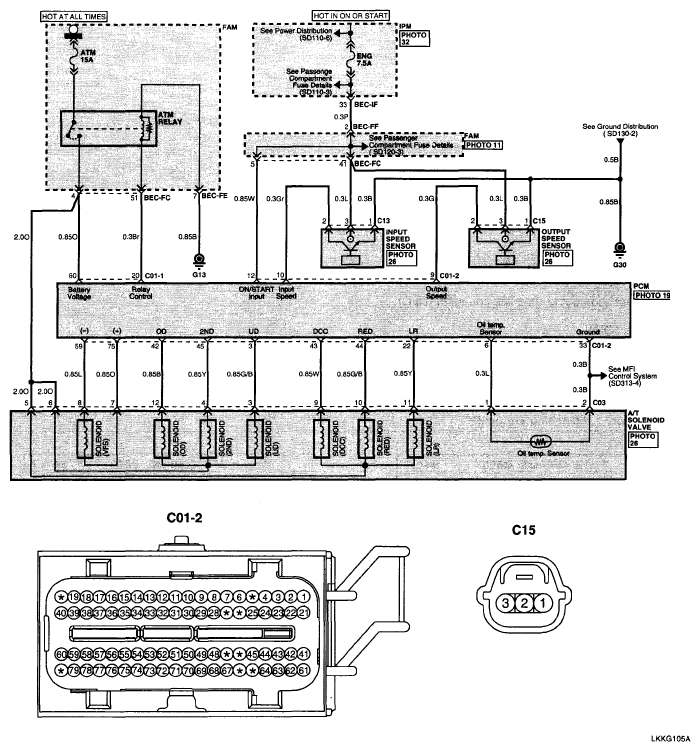

Home >> Hyundai >> 2007 >> Entourage GLS >> Repair and Diagnosis >> Transmission >> Automatic Transaxle System (A5HF1) >> Automatic Transaxle System >> DTC P0722 Output Speed Sensor Circuit - No Signal >> Schematic Diagram
