Power Supply Circuit Inspection

CHECK POWER TO RANGE SWITCH
1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
2. Ignition "ON" & Engine "OFF".
3. Measure voltage between terminal "8" of the sensor harness connector and chassis ground.
  Specification : approx. B+

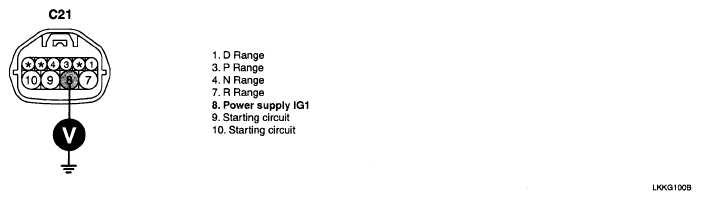

  Fig 1: Measuring Voltage Between Terminal "8" Of Sensor Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is voltage within specifications?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Check that Fuse 10A is installed or not blown.
  - Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
