Front Stabilizer Bar: Removal: Notes

  1. Remove the connecting bolt (A) between the steering universal joint assembly (B) and the pinion assembly.
    Fig 1: Identifying Connecting Bolt And Steering Universal Joint Assembly
    G05322589Courtesy of HYUNDAI MOTOR CO.
  2. Loosen the wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely supported.
  3. Remove the front wheel and tire (A) from front hub (B).
    Fig 2: Identifying Front Stabilizer Link Nut From Strut Assembly
    G05322563Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage the hub bolts (C) when removing the front wheel and tire (A).
  4. Remove the front stabilizer link (A) nut (B) from the strut assembly.
    Fig 3: Identifying Front Stabilizer Link Nut
    G05322591Courtesy of HYUNDAI MOTOR CO.
  5. After removing both sides of the tie rod end (A) self-locking nuts (B) and cotter pin (C), remove the ball joint by using the special tool (09568-4A000).
    Fig 4: Identifying Tie Rod End, Self-Locking Nuts And Cotter Pin
    G05322592Courtesy of HYUNDAI MOTOR CO.
    Fig 5: Identifying Tie Rod End
    G05322477Courtesy of HYUNDAI MOTOR CO.
  6. Remove both sides of the lower arm (A) mounting bolts (B).
    Fig 6: Identifying Front Lower Arm Mounting Bolt
    G05322579Courtesy of HYUNDAI MOTOR CO.
  7. Remove the engine mounting bolts (A, B)
    Fig 7: Identifying Engine Mounting Bolts
    G05322595Courtesy of HYUNDAI MOTOR CO.
    Fig 8: Identifying Mounting Bolts
    G05322596Courtesy of HYUNDAI MOTOR CO.

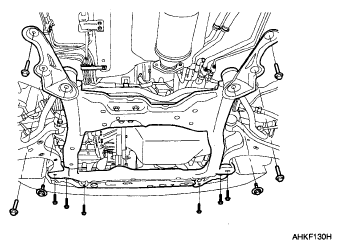

  8. Remove the twelve bolts and nuts of the sub frame by supporting it with a jack.
    Fig 9: Identifying Sub Frame Nuts And Bolts
    G05322597Courtesy of HYUNDAI MOTOR CO.
  9. After lowering the jack which supports the sub frame in a proper level, remove both sides of the stabilizer bar assembly mounting bolts (A).
    Fig 10: Identifying Stabilizer Bar Assembly Mounting Bolts
    G05322598Courtesy of HYUNDAI MOTOR CO.
  10. Remove the stabilizer bar assembly through the gap between the body and the rear side of the sub frame.
    CAUTION: Be careful not to damage to the power steering related tubes.
  11. Remove the brackets (A) and the bushings (B).
Fig 11: Identifying Brackets And Bushings
G05322599Courtesy of HYUNDAI MOTOR CO.
