Front Stabilizer Bar: Installation

  1. Install the bushing (B) on the stabilizer bar (A).
    Fig 1: Identifying Bushing On Stabilizer Bar
    G04880417Courtesy of HYUNDAI MOTOR CO.
    NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
  2. Install the bracket on the bushing (B).
  3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
  4. Install the stabilizer bar bracket mounting bolts (A) to the sub frame.

    Tightening torque Nm (kgf.m, lb-ft) :

    39 ~ 60 (3.9 ~ 6.0, 28.2 ~ 43.4)

    Fig 2: Identifying Stabilizer Bar Bracket Mounting Bolts
    G05322598Courtesy of HYUNDAI MOTOR CO.
  5. After lifting the jack which supports the sub frame, install the four bolts (A) of the sub frame and the eight bolts (B) of the guide bracket.

    Tightening torque Nm (kgf.m, lb-ft) :

    Bolt (A) : 160 ~ 180 (16 ~ 18, 115.7 ~ 130.2)

    Bolt (B) : 45 ~ 60 (4.5 ~ 6.0, 32.5 ~ 43.4)

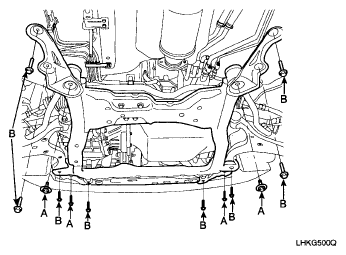

    Fig 3: Identifying Sub Frame Bolts And Guide Bracket
    G05322603Courtesy of HYUNDAI MOTOR CO.
  6. Install the engine mounting bolts (A, B)

    Tightening torque Nm (kgf.m, lb-ft) :

    65 ~ 85 (6.5 ~ 8.5, 47.0 ~ 61.5)

    Fig 4: Identifying Engine Mounting Bolts
    G05322595Courtesy of HYUNDAI MOTOR CO.
    Fig 5: Identifying Mounting Bolts
    G05322596Courtesy of HYUNDAI MOTOR CO.
  7. Install both sides of the lower arm (A) mounting bolts (B).

    Tightening torque Nm (kgf.m, lb-ft) :

    90 ~ 120 (9 ~ 12, 65.1 ~ 86.8)

    Fig 6: Identifying Front Lower Arm Mounting Bolt
    G05322579Courtesy of HYUNDAI MOTOR CO.
  8. Install both sides of the tie rod end (A) self-locking nuts (B). Insert cotter pin after nut is torqued to specifications.

    Tightening torque Nm (kgf.m, lb-ft) :

    65 ~ 80 (6 ~ 8, 43.4 ~ 57.8)

    Fig 7: Identifying Tie Rod End, Self-Locking Nuts And Cotter Pin
    G05322592Courtesy of HYUNDAI MOTOR CO.
  9. Install the front stabilizer link (A) nut (B) to the strut assembly.

    Tightening torque Nm (kgf.m, lb-ft) :

    100 ~ 120 (10 ~ 12, 72.3 ~ 86.8)

    Fig 8: Identifying Front Stabilizer Link Nut From Strut Assembly
    G05322563Courtesy of HYUNDAI MOTOR CO.
  10. Install the wheel and the tire (A) to the front hub (B).

    Tightening torque Nm (kgf.m, lb-ft) :

    90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)

    Fig 9: Identifying Front Stabilizer Link Nut
    G05322591Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
  11. Install the connecting bolt (A) between the steering universal joint assembly (B) and the pinion assembly.

    Tightening torque Nm (kgf.m, lb-ft) :

    13 ~ 18 (1.3 ~ 1.8, 9.4 ~ 13.0)

    Fig 10: Identifying Connecting Bolt And Steering Universal Joint Assembly
    G05322589Courtesy of HYUNDAI MOTOR CO.
    CAUTION: After installation, if necessary, adjust the alignment of the steering wheel and front tires
