Immobilize Control System
>>
Circuit Diagram
Circuit Diagram

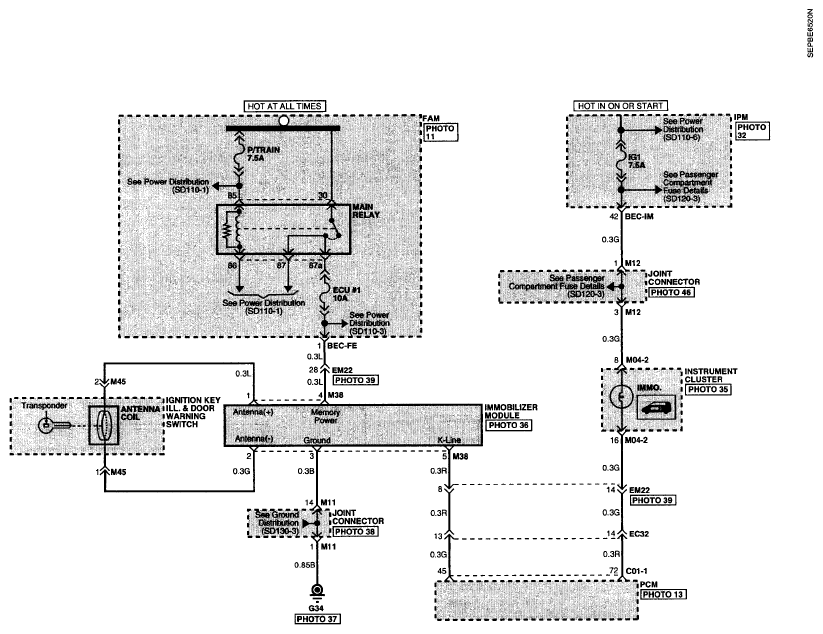

Fig 1: Immobilizer Control System - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

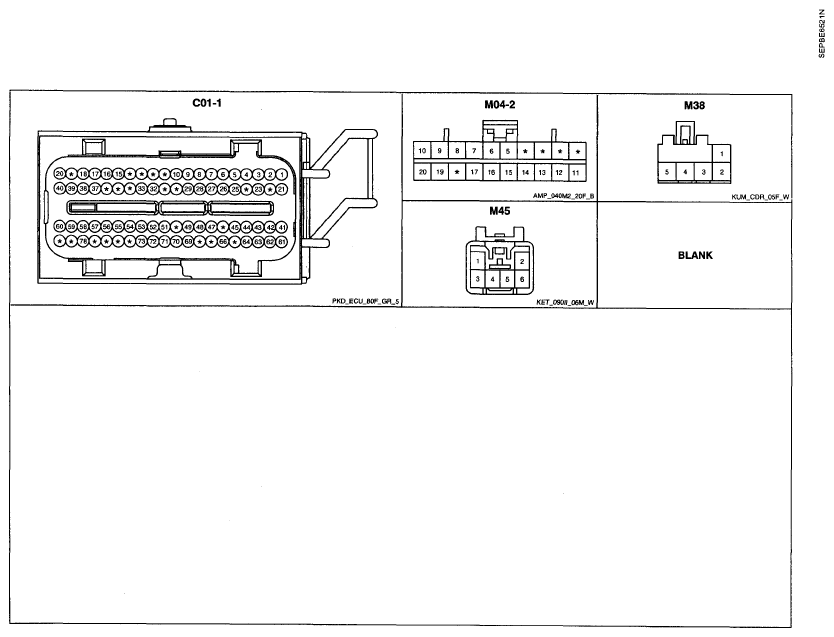

Fig 2: Immobilizer Control System - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
