Signal Circuit Inspection

  1. Check short to ground in harness
    1. IG "OFF" and disconnect TPS connector and PCM connector.
    2. Measure resistance between terminal 6 of TPS harness connector and chassis ground.
    3. Measure resistance between terminals 6 and 5 (8) of TPS harness connector.

      Specification : Infinite

      Fig 1: Measuring Resistance Between Terminals 6 And 5 (8) Of TPS Harness Connector
      G05322019Courtesy of HYUNDAI MOTOR CO.
    4. Is the measured resistance within specification?

      YES

      • Go to " 2Check open in harness" as follows

      NO

  2. Check open in harness
    1. IG "OFF" and disconnect TPS connector and PCM connector.
    2. Measure resistance between terminal 6 of TPS harness connector and terminal 57 of PCM harness connector.

      Specification : Below 1 Ω

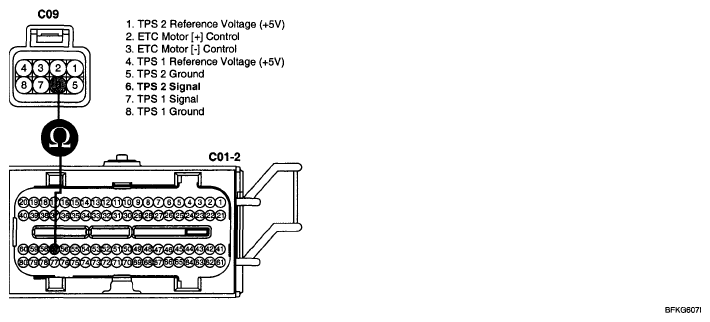

      Fig 2: Measuring Resistance Between TPS Harness Connector Terminal 6 And PCM Harness Connector Terminal 57
      G05322020Courtesy of HYUNDAI MOTOR CO.
    3. Is the measured resistance within specification?

      YES

      NO
