Module Assembly Replacement

Remove the following parts.
- Door trim. (Refer to DOOR TRIM REPLACEMENT )
- Window glass. (Refer to GLASS REPLACEMENT )
- Outside handle. (Refer to OUT SIDE HANDLE REPLACEMENT )
Loosen the mounting bolt (A). >: Bolt Locations

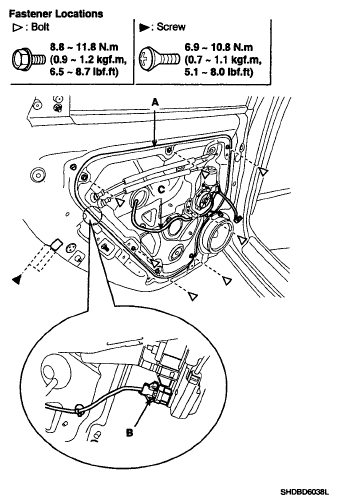

Fig 1: Identifying Door Module Assembly Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
After loosening the door module mounting bolts, remove the door module (A).
Disconnect the connector (B).
Detach the clips, then remove the wiring harness (C).

Fig 2: Identifying Clips And Wiring Harness Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door lock and open properly.
