Mechanical System: Function: Brakes
The automatic transaxle (A4CF2) uses the low and reverse brake and the second brake. The low and reverse brake is fixed by the low and reverse annulus gear and overdrive planetary carrier at the 1st speed.

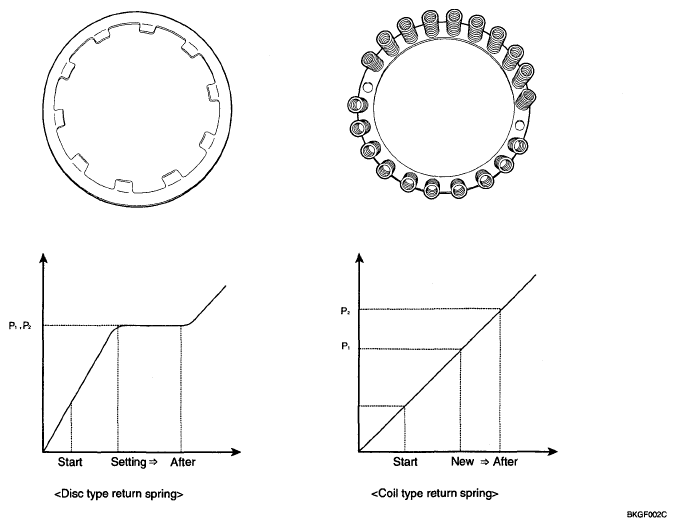

- The disc type return spring is applied to the low and reverse brake and it minimizes the slip of the friction material from the uniform spring operation power to improve the durability and reduce the length.
The overdrive sun gear is held on the transaxle case by the second brake at the 2nd speed.
