Component Inspection

Check "INPUT SPEED SENSOR"

Ignition "OFF".
Disconnect the "INPUT SPEED SENSOR" connector.
Measure resistance between terminal "1","2" and "2","3" and "1","3" of the "INPUT SPEED SENSOR" connector.
Specification : Refer to "REFERENCE DATA "

Fig 1: Measuring Resistance Between Input Speed Sensor Connector Terminals 1 And 2

Is resistance within specifications?

[REFERENCE DATA]

REFERENCE DATA

Data	Reference Data
Current	22 mA
Air Gap	Input sensor	1.3mm (0.051 in)
Air Gap	Output sensor	0.85mm (0.033in)
Resistance	Input sensor	Above 4 MΩ
Resistance	Output sensor	Above 4 MΩ
Voltage	High	4.8 ~ 5.2V
Voltage	Low	Below 0.8V

YES

Go to 5 "Check PCM/TCM" as below.
NO
- Replace "INPUT SPEED SENSOR" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

CHECK PCM/TCM
1. Ignition "ON" & Engine "OFF".
2. Connect "INPUT SPEED SENSOR" connector.
3. Install scantool and select a SIMU-SCAN.
4. Simulate frequency to INPUT SPEED SENSOR signal circuit.

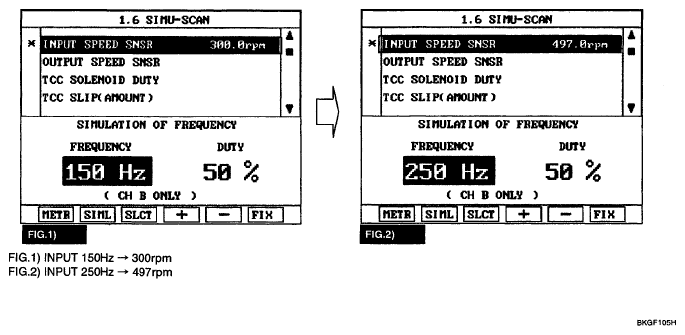

  Fig 2: Scantool Display - SIMU-SCAN

  & The values are subject to change according to vehicle model or conditions.
5. Is "INPUT SPEED SENSOR" signal value changed according to simulation frequency?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
