Camshaft Position Sensor (CMPS): Inspection: Waveform

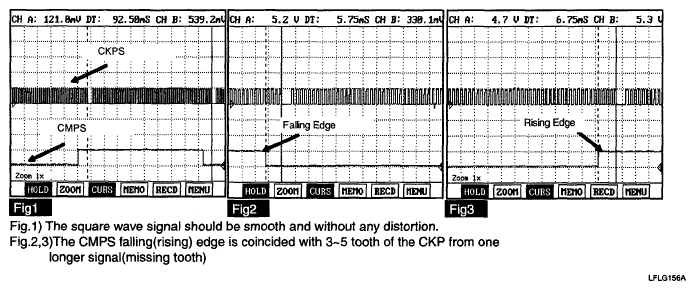

Fig 1: Signal Waveform Of CMPS Falling Rising Edge

G05363721
