Anti-Lock Braking System Control Module: Removal
- Disconnect the battery (-) terminal.

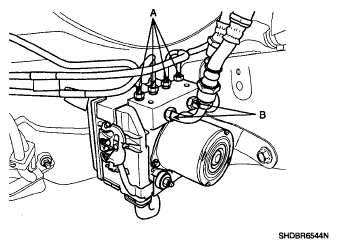

- Disconnect the brake tubes from the HECU.
Tightening torque Nm (kgf.m, lb-ft):
Nut (A) : 12.7 ~ 16.7(1.3 ~ 1.7, 9.4 ~ 12.3) Nut (B) :
ABS : 12.7 ~ 16.7(1.3 ~ 1.7, 9.4 ~ 12.3)
ECS : 18.6 ~ 22.6(1.9 ~ 2.3, 13.7 ~ 16.6)
- Disconnect the HECU connector.
- Remove the HECU by loosening the bracket mounting bolts.
Tightening torque Nm (kgf.m, lb-ft):
16.7 ~ 25.5 (1.7 ~ 2.6, 12.3 ~ 18.8)
CAUTION:- Never attempt to disassemble the HECU.
- The HECU must be protected during storage and transport, and must not be subjected to excessive shock.
