Rear Curtain Unit: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia panel. (Refer to CRASH PAD )
  3. Remove the rear curtain unit (A) after removing mounting 2 nuts and a connector.

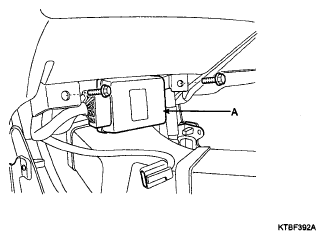

    Fig 1: Identifying Rear Curtain Unit
    G04881571Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
