Power Steering Oil Pump: Installation

Install the oil pump (A) to the oil pump bracket.
Tightening Torque Nm (kgf.m, lb-ft):

35 ~ 55 (3.5 ~ 5.5, 25.3 ~ 39.7)

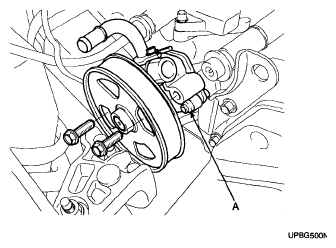

Fig 1: Identifying Oil Pump
Courtesy of HYUNDAI MOTOR CO.
Install the drive belt by pulling the auto tensioner.
Install the suction hose (B).
Install the pressure (A) hose to the oil pump.
Tightening Torque Nm (kgf.m, lb-ft):

55 ~ 65 (5.5 ~ 6.5, 39.7 ~ 47)

NOTE: Install the pressure hose being careful so that it does not twist and come in contact with other components.

Fig 2: Identifying Suction Hose And Pressure Hose
Courtesy of HYUNDAI MOTOR CO.
Add power steering fluid (PSF-3).
Bleed the system.
Check the oil pump pressure.
