Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Steering >> Mechanical Power Steering System >> Power Steering Oil Pump >> Components

Power Steering Oil Pump: Components

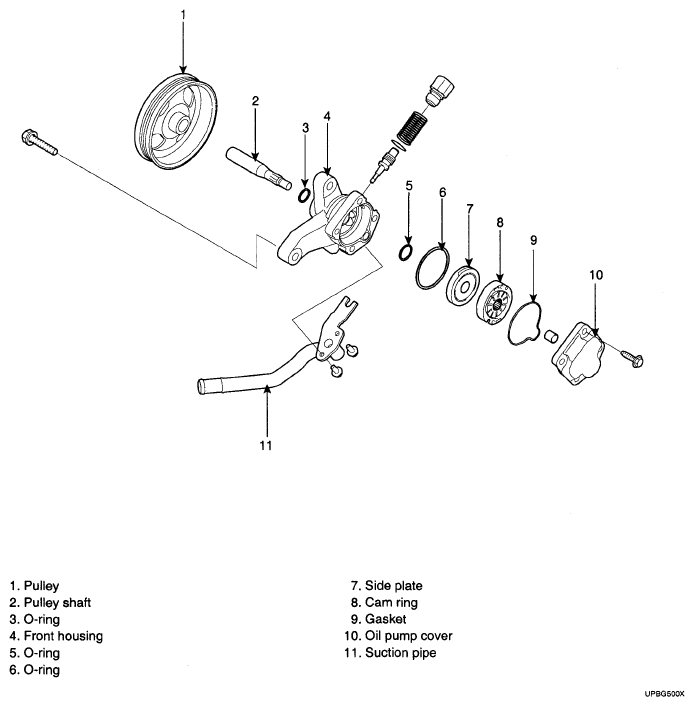

Fig 1: Identifying Power Steering Oil Pump Components

G04880602

Courtesy of HYUNDAI MOTOR CO.
