Seat Frame Assembly Replacement

  1. Loosen the mounting bolts.
  2. Remove the seat frame (A).

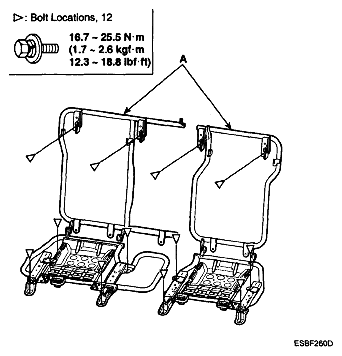

    Fig 1: Seat Frame With Torque Specifications
    G04881238Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
