Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Front Hub / Knuckle >> Components

Front Hub / Knuckle: Components

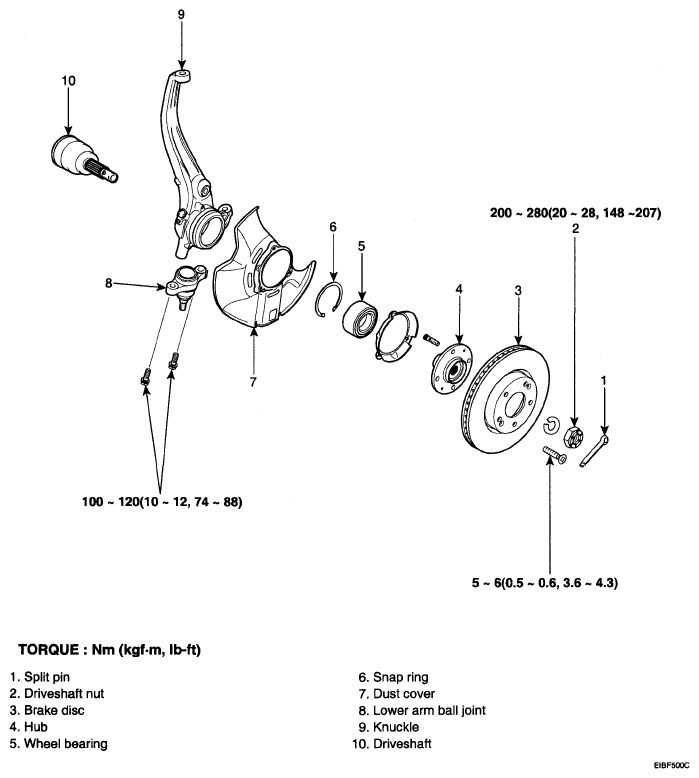

Fig 1: Front Hub / Knuckle Replacement Components With Torque Specifications

G04880306

Courtesy of HYUNDAI MOTOR CO.
