ESC Circuit Diagram

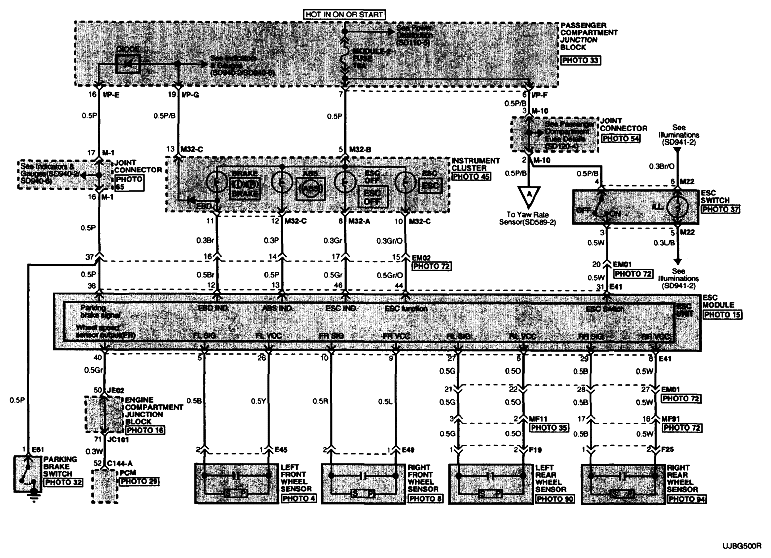

Fig 1: ESC Circuit Diagram (1 Of 3)
G04881018Courtesy of HYUNDAI MOTOR CO.

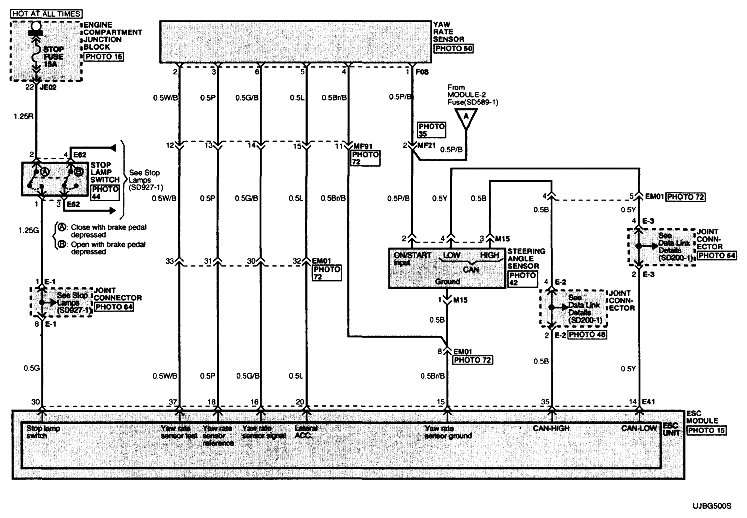

Fig 2: ESC Circuit Diagram (2 Of 3)
G04881019Courtesy of HYUNDAI MOTOR CO.

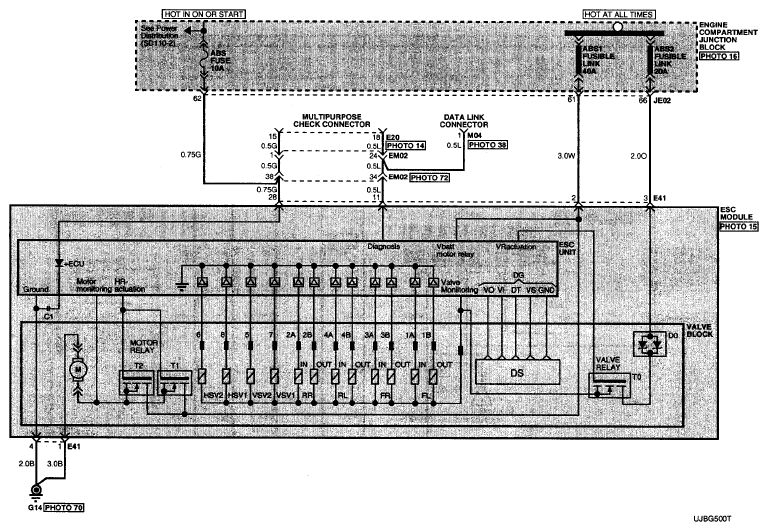

Fig 3: ESC Circuit Diagram (3 Of 3)
G04881020Courtesy of HYUNDAI MOTOR CO.
