Parking Brake: Components

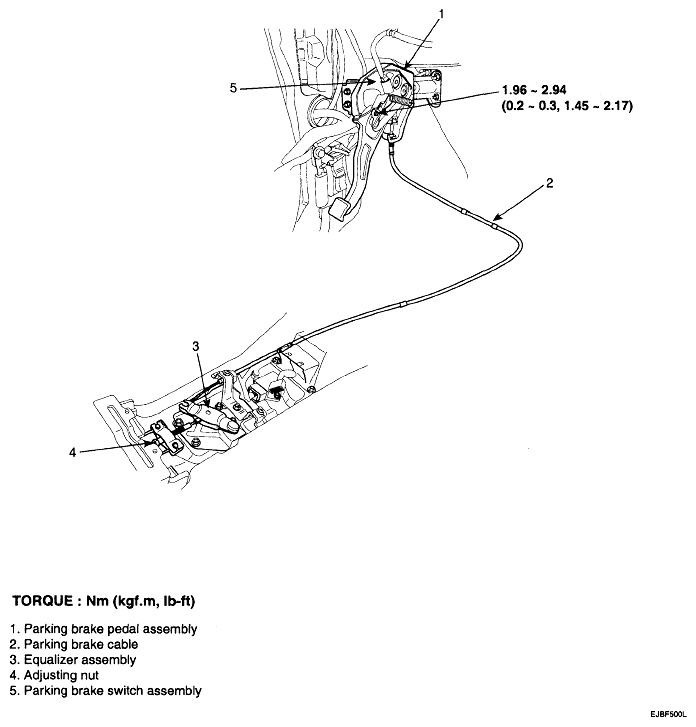

Fig 1: Parking Brake Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.

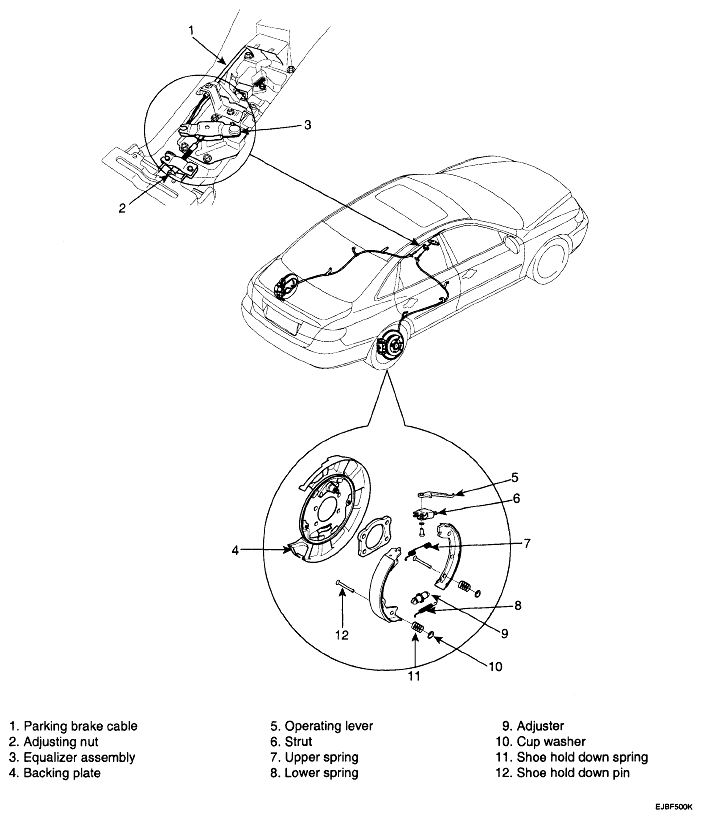

Fig 2: Identifying Parking Brake Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
