Key Holder Replacement

  1. Remove the trunk lid trim (See TRUNK LID TRIM REPLACEMENT  ).
  2. Remove the trunk lid garnish (A).
    Fig 1: Identifying Trunk Lid Garnish
    G04881057Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the outside handle rod (B) and connector (A).
  4. Remove the outside handle (C).

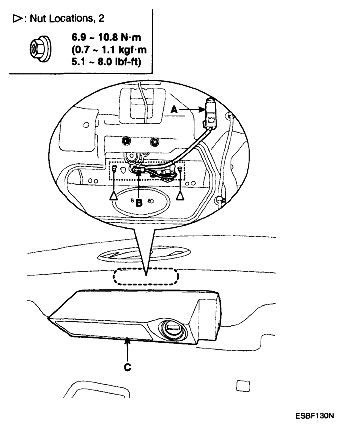

    Fig 2: Identifying Outside Handle Rod, Outside Handle And Connector
    G04881058Courtesy of HYUNDAI MOTOR CO.
  5. Loosen the key holder mounting bolt and remove (A).
    Fig 3: Identifying Key Holder Mounting
    G04881059Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
