Trunk Lid: Adjustment

  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the hood (D) by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid over-slam bumpers (C).
  3. After loosening the trunk lid latch (B) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.

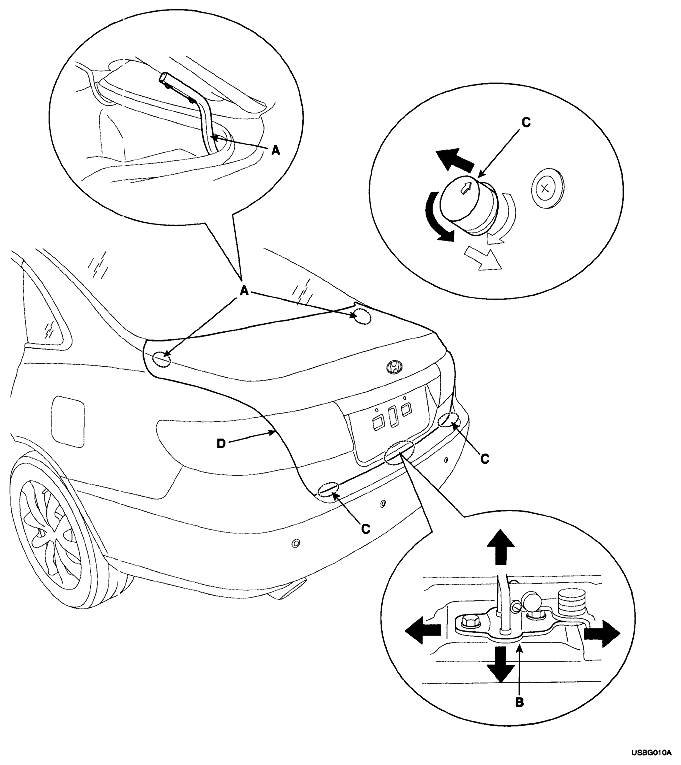

    Fig 1: Identifying Trunk Lid Hinge, Hood And Trunk Lid Latch
    G04881064Courtesy of HYUNDAI MOTOR CO.
