Motor Replacement

  1. Remove the overhead console (See REPLACEMENT ).
    NOTE: Confirm the position of guide whether it is closed or not when you remove the motor.
  2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).

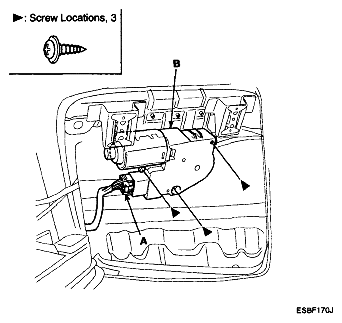

    Fig 1: Disconnecting Motor Connector
    G04881126Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure to initialize the motor.
