Inside Handle Replacement

  1. Remove the rear door trim (See REPLACEMENT  ).
  2. Loosen the inside handle (A) mounting screws.

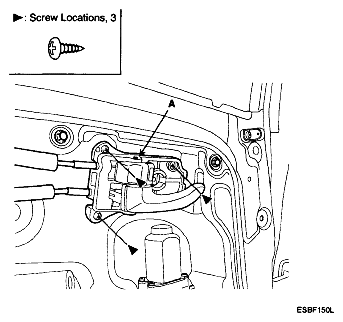

    Fig 1: Identifying Inside Handle
    G04881104Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the lock cable and (A) inside connect cable (B).
    Fig 2: Identifying Lock Cable And Inside Connect Cable
    G04881105Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the door lock and open properly.
