Hood Latch Replacement

  1. Remove the front bumper cover (See REPLACEMENT ).
  2. Detach the clips, then remove the hood latch cover (A).
    Fig 1: Identifying Hood Latch Cover
    G04881046Courtesy of HYUNDAI MOTOR CO.
  3. Remove the hood latch (A) mounting bolts.
  4. Disconnect the hood latch cable (B) and release cable (C).

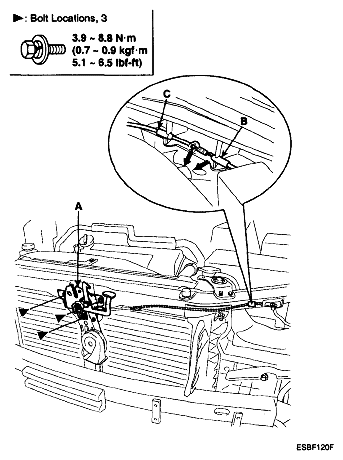

    Fig 2: Identifying Hood Latch Cable, Cable And Hood Latch
    G04881047Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    NOTE:
    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks securely.
