Hood Assembly Replacement
NOTE:
- When removing and installing the hood, an assistant is necessary.
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.

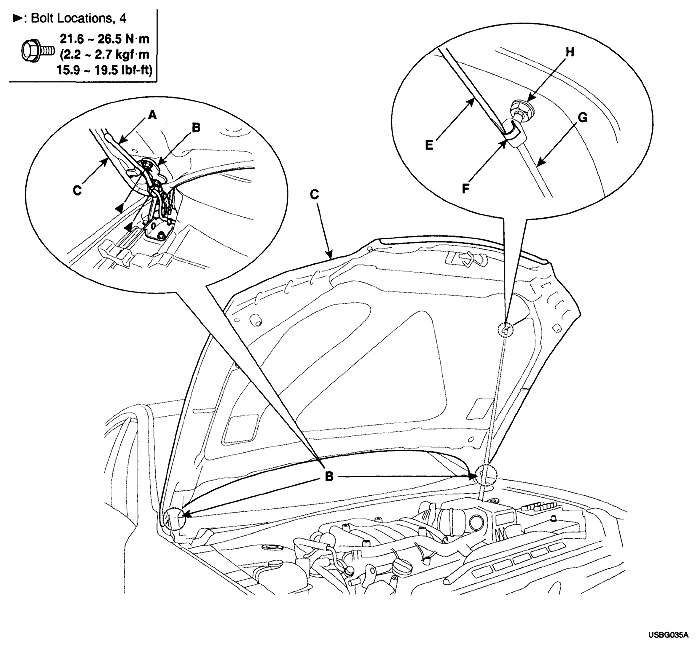

- Disconnect the windshield washer nozzle connecting tube (A).
- After loosen the hood hinge (B) mounting bolts, remove the hood (C).
- Using a screwdriver (E), lift up slightly the socket clips (F) of both ends on the lifter (G), and then remove the lifter from the bracket (H).
- Installation is the reverse of removal.NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment (See ADJUSTMENT ).
