Front Door Trim Replacement

NOTE:
  • Take care not to scratch the door trim and other parts.
  • Put on gloves to protect your hands.
  1. Remove the quadrant inner cover (A).
    Fig 1: Identifying Quadrant Inner Cover
    G04881066Courtesy of HYUNDAI MOTOR CO.
  2. Remove the inside handle cover (A).
    Fig 2: Identifying Inside Handle Cover
    G04881067Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the door trim (F) mounting screws. Release the clips that hold the door trim, then remove the door trim by pulling it upward. Disconnect the power window switch connector (A), power mirror connector (B), and door courtesy lamp connector (C), trunk lid connector (D).

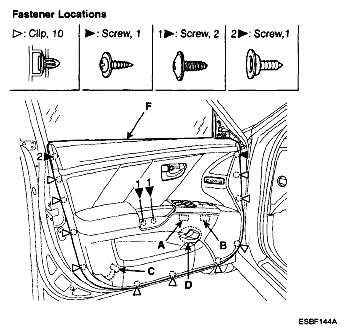

    Fig 3: Identifying Door Trim, Power Window Switch Connector, Power Mirror Connector, And Door Courtesy Lamp Connector
    G04881068Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connectors are plugged in properly and each rod is connected securely.
    • Make sure the door locks and opens properly.
