Front Door Latch Assembly Replacement

Remove the following parts.
- Front door trim (See REPLACEMENT ).
- Glass (See GLASS REPLACEMENT ).
- Inside handle (See OUT SIDE HANDLE REPLACEMENT ).
- Out side handle (See OUT SIDE HANDLE REPLACEMENT ).
Remove the module assembly (See FRONT DOOR MODULE ASSEMBLY REPLACEMENT ).
Disconnect the latch connector (A), then remove the latch assembly (B).

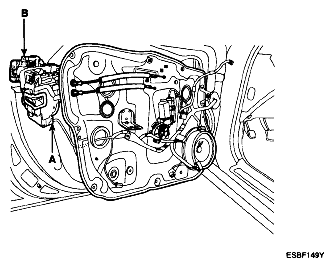

Fig 1: Identifying Latch Connector And Latch Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse the removal.
NOTE:
- Make sure the door locks and opens properly.
