Door Weatherstrip Replacement

  1. Loosen the checker mounting bolts.
  2. Detach the clips, then remove the weatherstrip (A).

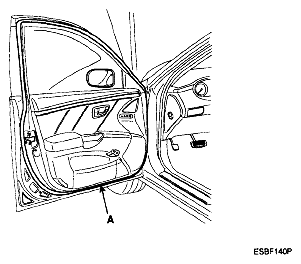

    Fig 1: Identifying Weatherstrip
    G04881084Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
