Body Weatherstrip Replacement

  1. Remove the front door scuff trim (See FRONT DOOR SCUFF TRIM REPLACEMENT ).
  2. Remove the weatherstrip (A).

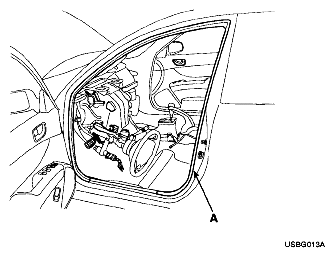

    Fig 1: Identifying Weatherstrip
    G04881085Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
